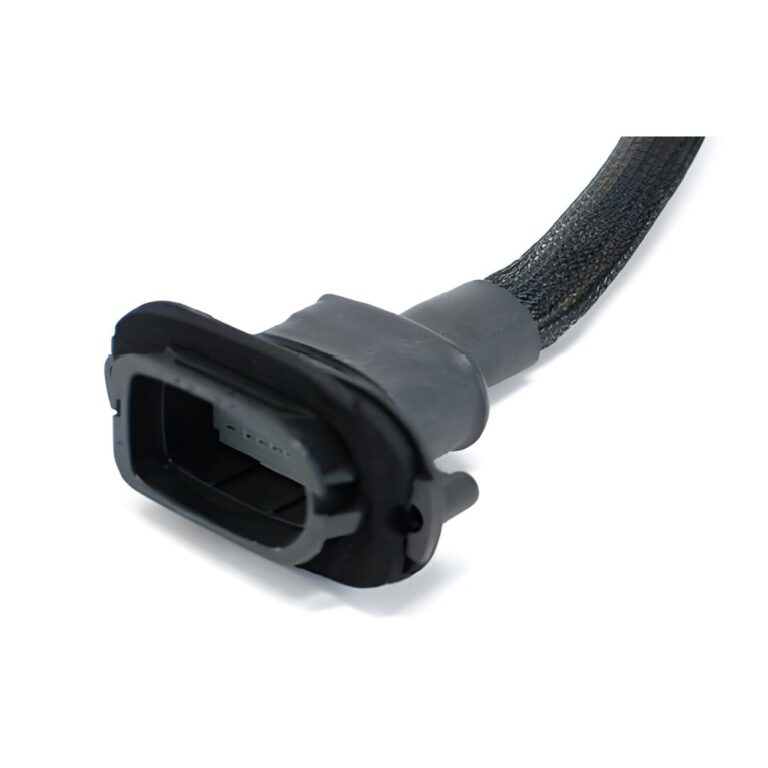

CanuFlex PA 6.6
Braided sleeve from polyamide
High grade braided sleeve for protection, strengthening or bundling of cables, wires, pipes and hoses, that are exposed to extreme impacts. Particularly appropriate to wire harnesses, fluid pipes, air conditioning pipes for automotive, aerospace and military applications.
Features and Benefits
- Polyamide V2 monofilaments
- Particularly abrasion resistant
- Adapts very good to application shape
- Easy installation even over wide diameter differences and around bends
- Push-back effect requires only a few sizes for a wide range of diameters
- Self-extinguishing due to its braided construction
- Continuous working temperature: -60°C to 160°C
Standards
- Automotive OEM specifications
Typical Applications
Cable bundling and protection, noise reduction, protection against abrasion
Market/Applications
- Industrial
- Automotive
*Alcalescent or weakly acidic materials, oils, fats, aliphatic and aromatic hydrocarbons. Unstable: Strong acidic or alkaline materials, longer impact of hot water.
Ordering
- Select options:
- Color: Black (BK)
- Please specify the product name, order number and options you require
- Order example: Canuflex PA 6.6, 08, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Nominal | Expanded | Delivery Units | |||||
| Internal Diameter | Internal Diameter | Spool Length | Mini-Spool Length | |||||
| mm | in | mm | in | m | ft | m | ft | |
| 03 | 2.0 | 0.079 | 5.0 | 0.197 | 500 | 1640 | 100 | 328 |
| 04 | 3.0 | 0.118 | 7.0 | 0.276 | 500 | 1640 | 100 | 328 |
| 05 | 4.0 | 0.157 | 9.0 | 0.354 | 500 | 1640 | 100 | 328 |
| 08 | 6.0 | 0.236 | 12.0 | 0.472 | 300 | 984 | 100 | 328 |
| 10 | 8.0 | 0.315 | 15.0 | 0.591 | 300 | 984 | 100 | 328 |
| 12 | 10.0 | 0.394 | 18.0 | 0.709 | 300 | 984 | 50 | 164 |
| 15 | 13.0 | 0.512 | 21.0 | 0.827 | 300 | 984 | 50 | 164 |
| 20 | 18.0 | 0.709 | 27.0 | 1.063 | 200 | 656 | 50 | 164 |
| 25 | 22.0 | 0.866 | 33.0 | 1.299 | 200 | 656 | 25 | 82 |
| 30 | 27.0 | 1.063 | 38.0 | 1.496 | 150 | 492 | 25 | 82 |
| 40 | 35.0 | 1.378 | 64.0 | 2.520 | 100 | 328 | 25 | 82 |
| 50 | 45.0 | 1.772 | 75.0 | 2.953 | 100 | 328 | 25 | 82 |
