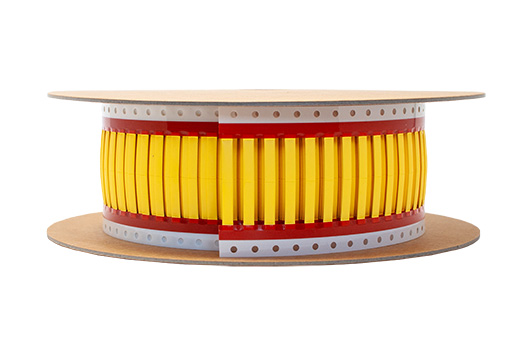

DMS DR
Diesel resistant heat shrink identification sleeve
Diesel resistant printable permanent identification sleeve.
Features and Benefits
- Diesel resistant
- Excellent for extreme conditions in aerospace, rail and construction industries
- Shrink ratio: 3:1
- Continuous operating temperature: -55°C to 135°C
- Shrink Temperature: 90°C min.
Standards
- SNCF qualified in accordance with NFF00-608 Category A and H
- EN 50343*
- SAE AS81531 4.6.2*
- MIL-STD-202G Method215*
*Hardware used “XD Q” printer from CAB and “RBZ11DR” ribbon from DSG-Canusa.
Typical Applications
Cable identification
Market/Applications
- Rail
- Military
- Aerospace
- Offshore
- Marine
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Yellow (YW)
- Perforation: no perforation (P0) with 50 mm lengths, 1 perforation (P1) with 25 mm lengths, 2 perforations (P2) with 16,6 mm lengths, 3 perforations (P3) with 12,5 mm lengths
- Please specify the product name, order number and options you require
- Order example: DMS DR, P1, 4.8, yellow, 1,000 pieces
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Total Wall Thickness (nom) | Delivery Units | |||
| Internal Diameter (min) D | Internal Diameter (max) d | Total Wall Thickness (nom) W | Pieces per Reel | ||||
| mm | in | mm | in | mm | in | ||
| DMS DR 2.4 | 2.4 | 3/32 | 0.8 | 0.031 | 0.50 | 0.020 | 5,000 |
| DMS DR 3.2 | 3.2 | 1/8 | 1.0 | 0.040 | 0.50 | 0.020 | 5,000* |
| DMS DR 4.8 | 4.8 | 3/16 | 1.6 | 0.063 | 0.50 | 0.020 | 2,500* |
| DMS DR 6.4 | 6.4 | 1/4 | 2.0 | 0.079 | 0.55 | 0.022 | 2,500* |
| DMS DR 9.5 | 9.5 | 3/8 | 3.0 | 0.118 | 0.55 | 0.022 | 1,000* |
| DMS DR 12 | 12.7 | 1/2 | 4.0 | 0.157 | 0.55 | 0.022 | 1,000 |
| DMS DR 18 | 19.0 | 3/4 | 6.0 | 0.236 | 0.60 | 0.024 | 1,000 |
| DMS DR 25 | 25.4 | 1 | 8.0 | 0.315 | 0.70 | 0.028 | 1,000 |
| DMS DR 38 | 38.1 | 1½ | 18.0 | 0.709 | 0.70 | 0.028 | 500 |
*Different delivery units per request.
