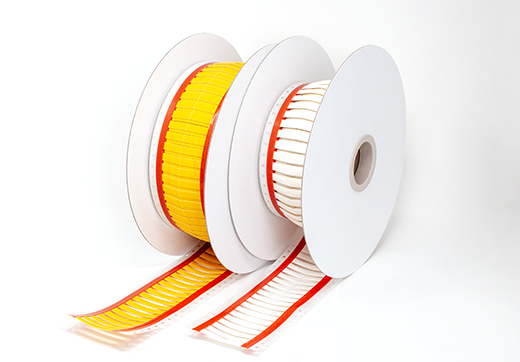

DMS MT
Thin wall crosslinked polyolefin
Flattened and flexible heat shrinkable identification sleeve with high shrink ratio and a smooth surface finish.
Features and Benefits
- Flame retardant
- Flexible
- Excellent print quality
- Ready to use for thermal transfer printers*
- Resistant to common fluids and solvents
- Shrink ratio: 3:1
- Continuous operating temperature: -55°C to 135°C
- Shrink Temperature: 90°C min.
Standards
- UL 224 125C ATF – UL file # E107857 (colors only)
- Meets the material performance class of QPL SAE AS23053/5 Class 1
- Meets the material performance class of DEF STAN 59-97 Type 2b
- SAE AS 81531 4.6.2 & MIL-STD-202F Methode 215J
*Hardware used: “XD Q” printer from CAB and “RBZ11DR” ribbon from DSG-Canusa.
Typical Applications
Cable identification
Market/Applications
- Commercial
- Industrial installation
- Military
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted, the resultant wall thickness will be less than specified.
- Select options:
- Color: Yellow (YL), White (WT)
- Perforation and lengths: no perforation (P0) with 50 mm lengths, 1 perforation (P1) with 25 mm lengths, 2 perforations (P2) with 16.6 mm lengths, 3 perforations (P3) with 12.5 mm lengths
- Please specify the product name, order number and options you require
- Order example: DMS MT, 4.8, yellow, P1
Please contact your Customer Service Representative for information on custom colours, sizes, lengths, and material data sheet.
| Order Number | Expanded | Recovered | Total Wall Thickness (nom) | Delivery Units | |||
| Internal Diameter (min) D | Internal Diameter (max) d | Total Wall Thickness (nom) W | Pieces | ||||
| mm | in | mm | in | mm | in | ||
| DMS MT 3.2 | 3.2 | 1/8 | 1.0 | 0.039 | 0.55 | 0.022 | 2,500 |
| DMS MT 4.8 | 4.8 | 3/16 | 1.5 | 0.059 | 0.60 | 0.024 | 1,000 |
| DMS MT 6.4 | 6.4 | 1/4 | 2.0 | 0.079 | 0.65 | 0.025 | 1,000 |
| DMS MT 9.5 | 9.5 | 3/8 | 3.0 | 0.118 | 0.75 | 0.030 | 1,000 |
| DMS MT 12.7 | 12.7 | 1/2 | 4.0 | 0.157 | 0.75 | 0.030 | 500 |
| DMS MT 19.0 | 19.0 | 3/4 | 6.0 | 0.236 | 0.85 | 0.033 | 500 |
| DMS MT 25.4 | 25.4 | 1 | 8.0 | 0.315 | 1.00 | 0.039 | 500 |
| DMS MT 39.0 | 39.0 | 1½ | 13.0 | 0.512 | 1.15 | 0.045 | 500 |
