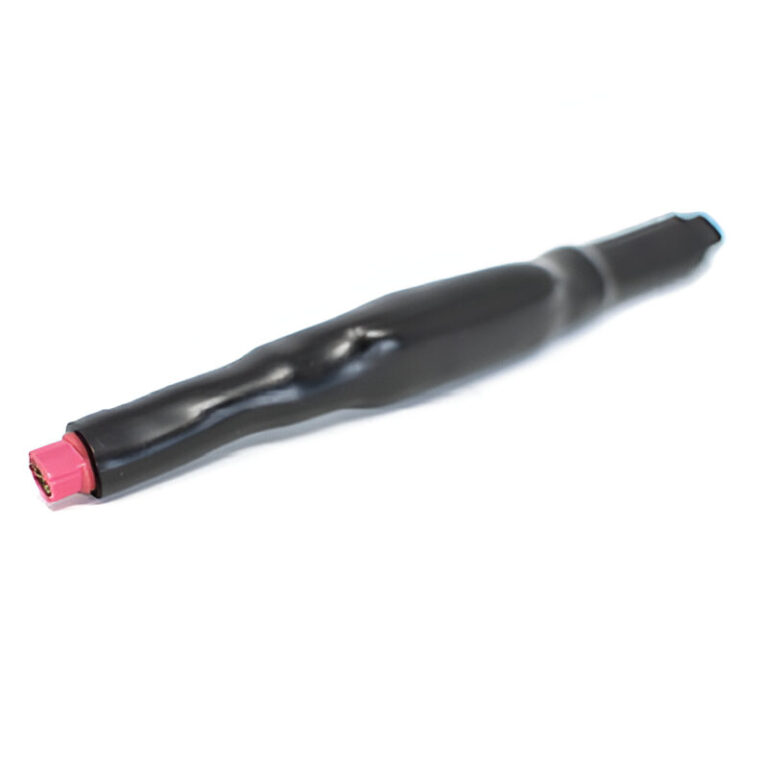

CPA 300

Thin wall adhesive lined crosslinked polyolefin

Adhesive lined heat shrink tubing ideal for applications where both exceptional flame retardancy and environmental sealing capabilities are required.

Highly flame retardant
High shrink ratio allows for coverage of irregularly shaped connectors and components
Adhesive liner bonds to plastics, rubber, neoprene, steel and polyethylene
Superior sealing against water, moisture and other contaminants
Superior protection for ring terminals without excessive adhesive flow
Shrink ratio: 3:1
Continuous operating temperature: -55°C to 125°C
Shrink temperature: 120°C min.

Environmental sealing of simple in-line splices, strain relief and sealing of connectors and terminals, mechanical protection of components

Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
Select options:
- Color: Black (BK), red (RD), white (WT), blue (BL), yellow (YL), green (GR) – all (except black) with MOQ
- Printing: Printed or unprinted
Please specify the product name, order number, and options you require.
Example: CPA 300, 0125, black, 48 in lengths

Please contact your Customer Service Representative for information on custom colors, sizes, lengths, and material data sheet.

Shrink Ratio
