DERAY®-SpliceMelt – EMEA
Adhesive lined crosslinked polyolefin

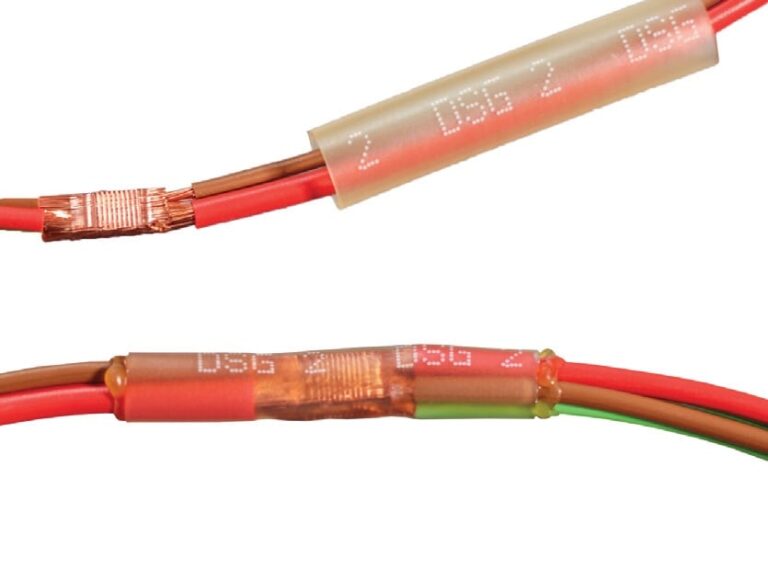

Adhesive lined heat shrink specifically designed to insulate, seal and protect in-line splices in automotive wire harnesses and electronic assemblies.
Features and Benefits
- High shrink ratio to fit varying splice configurations
- Seals and protects against water, moisture and chemicals
- Adhesive bonds readily to PVC, XLPE and PP-EPDM cable jackets
- Quick installation due to rapid shrinkage
- Shrink ratio: 4:1
- Continuous operating temperature: -40°C to 125°C
- Shrink temperature: 120°C min.
Standards
- Approved to major automotive OEM splice sealing specifications
Typical Applications
Environmental sealing of in-line splices<, sealing and strain relief of connectors and terminals, abrasion protection and electrical insulation of automotive wiring harness splices
Market/Applications
- Splice Sealing Solutions
- Automotive
- Application Equipment
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select Option:
- Color: Black (BK), clear (CL)
- Please specify the product name, order number and options you require
- Example: DERAY®-SpliceMelt, size 3, 65 mm, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Unit | |||||
| Internal Diameter (Min) D | Internal Diameter (Max) d | Total Wall Thickness (Nom) W | Cut Lengths | |||||
| mm | in | mm | in | mm | in | mm | in | |
| 1 | 6.0 | 0.236 | 1.4 | 0.055 | 1.45 | 0.057 | 50 | 1.97 |
| 2 | 8.0 | 0.315 | 1.6 | 0.063 | 1.75 | 0.069 | 50 | 1.97 |
| 3 | 12.0 | 0.472 | 2.5 | 0.098 | 2.35 | 0.093 | 65 | 2.56 |
| 4 | 18.0 | 0.709 | 4.5 | 0.177 | 2.65 | 0.104 | 75 | 2.955 |
