CCAP-RL

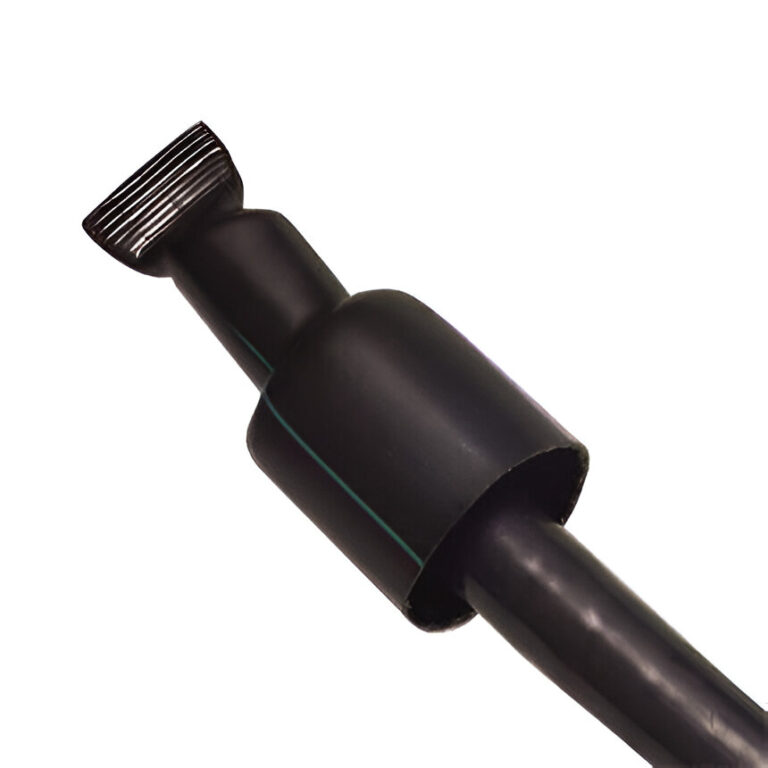

Medium wall crosslinked polyolefin end cap
Heat shrink end caps are a simple yet effective method for sealing cable ends, pipe, conduit or other similar objects.
Features and Benefits
- Superior resistance to weathering, moisture contamination and adverse environmental conditions
- Resistant to common fluids and solvents
- Standard adhesive liner provides complete environmental protection and insulation
- Coated hot melt adhesive resists pull-off
- Heat indicating lines
- 3:1 shrink ratio
- Continuous operating temperature: -55°C to 110°C
- Shrink temperature: 120°C
Typical Applications
Watertight sealing of cable ends and pipe conduit
Market/Applications
- OEM
- Power Distribution
- Power Distribution – LV
- Industrial
- Utility
- Mining
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options
- Printing: Printed or Unprinted
- Adhesive Lining: Lined (D) or Unlined (U)
- Please specify the product name, order number and options you require.
- Order example: CCAP, 1300-RL, black, unprinted, lined
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded Length¹ (Nom) |
Expanded | Recovered | General Use Diameter | Cable Range | ||||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Wall Thickness (Nom) W |
|||||||||
| mm | in | mm | in | mm | in | mm | in | mm | in | AWG/MCM | |
| 0400-RL | 50.8 | 2.0 | 10.2 | 0.40 | 3.8 | 0.15 | 2.0 | 0.080 | 4.5 – 8.5 | .18 – .34 | #8 – #1 |
| 0750-RL | 63.5 | 2.5 | 19.1 | 0.75 | 5.6 | 0.22 | 2.0 | 0.080 | 6 – 16.5 | .24 – .65 | #2 – 4/0 |
| 1100-RL | 76.2 | 3.0 | 27.9 | 1.10 | 10.2 | 0.40 | 2.4 | 0.095 | 11.5 – 25 | .45 – 1 | 2/0 – 500 |
| 1300-RL | 76.2 | 3.0 | 33.0 | 1.30 | 10.2 | 0.40 | 2.4 | 0.095 | 11.5 – 30 | .45 – 1.2 | 300 – 1000 |
| 1500-RL | 88.9 | 3.5 | 38.1 | 1.50 | 12.7 | 0.50 | 2.4 | 0.095 | 14 – 35 | .55 – 1.4 | 500 – 1500 |
| 1700-RL | 88.9 | 3.5 | 43.2 | 1.70 | 12.7 | 0.50 | 2.5 | 0.100 | 14 – 40 | .55 – 1.6 | 650 – 1750 |
| 2050-RL | 88.9 | 3.5 | 52.1 | 2.05 | 19.0 | 0.75 | 2.5 | 0.100 | 21 – 45 | .82 – 1.8 | 900 – 2500 |
| 2750-RL | 101.6 | 4.0 | 69.8 | 2.75 | 25.4 | 1.00 | 2.5 | 0.100 | 30 – 63 | 1.2 – 2.5 | 2000 – 2500 |
| 3500-RL | 114.3 | 4.5 | 88.9 | 3.50 | 30.0 | 1.18 | 2.5 | 0.100 | 33 – 83.8 | 1.3 – 3.3 | |
| 4700-RL | 139.7 | 5.5 | 119.4 | 4.70 | 39.9 | 1.57 | 2.7 | 0.105 | 40.6 – 114.3 | 1.6 – 4.5 | |
