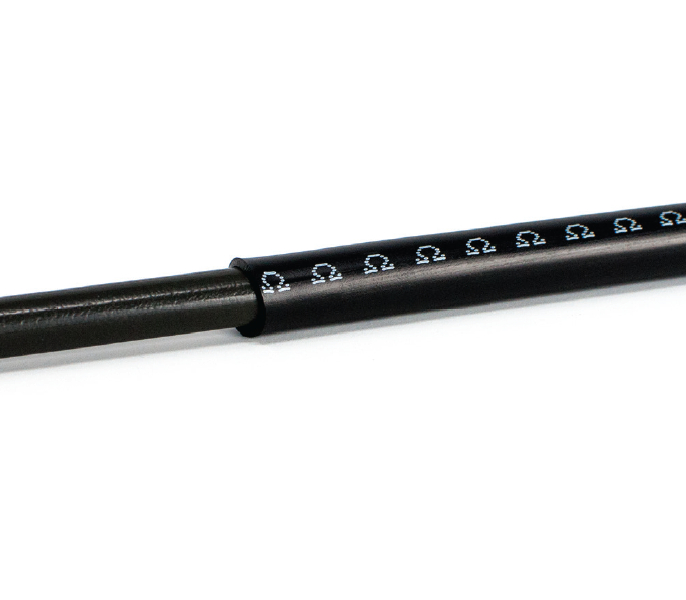

DERAY®-IB CON
Semiconducting adhesive lined shrink tube
Adhesive lined semi-conductive heat shrinkable tube. Ideal for the electrostatic discharge of fuel lines.
Features and Benefits
- Specially designed for electrostatic discharge of fuel lines
- Continuously printed with “Ω”
- Semi-conductive
- Inner adhesive bounds to metals
- Shrink ratio: 3:1
- Continuous operating temperature: -30°C to 105°C
- Shrink temperature: 110°C
Standards
- Approved to Ford and GM to major OEM fuel line specification
Typical Applications
Electrostatic discharge of fuel lines
Market/Applications
- Industrial
- Automotive
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK)
- Please specify the product name, order number and options you require
- Order example: DERAY®-IBCON,13.5/4.0, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Wall Thickness (Nom) W |
Spool Lengths | |||||
| mm | in | mm | in | mm | in | m | ft | |
| 13.5/4.0 | 13.5 | 0.531 | 4.0 | 0.157 | 1.20 | 0.047 | 100 | 328 |
| 17.5/4.0 | 17.5 | 0.689 | 4.0 | 0.157 | 1.20 | 0.047 | 100 | 328 |
