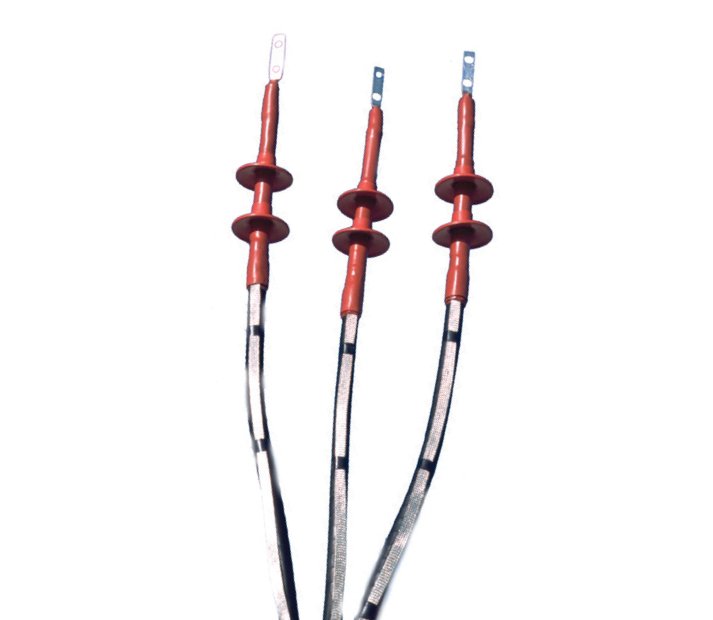

Heat Shrink 3/C Conversion Kits
Converts 3 conductor cables to 3 single core cables
- Select the 3/C conversion kit based on the voltage class, termination kit type and whether it’s for indoor or outdoor use
- Example: for CT 151EG Outdoor Termination Kits, select CT3MODA kit to convert 3/C to 3-1/C cable termination configuration
Heat Shrink Conversion Kits
3/C Termination Conversion Kits
Kit Contents:
- Outdoor kits contain rejacketing tubes, sealant, cable breakout boot
- Indoor kits contain rejacketing tubes for phase and ground conductors, sealants
3/C Joint Conversion Kits (Unarmored)
Converts 3-1/C Joint Kits into 1-3/C Joint Kits
Kit Contents:
- Rejacketing wraparound sleeves and sealant strips
3/C Joint Conversion Kits (Armored)
Converts 3-1/C Joint Kits into 1-3/C Armored Joint Kits
- Select the 3/C conversion kit based on the voltage class, joint kit type and whether it’s armored or not
- Example: for CJ 823 Joint Kits, select CJ 3AMOD2 kit to convert 3-1/C to 3/C armored cable joint kit configuration
Kit Contents:
- Galvinized steel wraparound case, rejacketing wraparound sleeves and sealant strips
Market/Applications
- Water/Waste Water Treatment
- Industrial
- Power Distribution – MV
- Utility
- Commercial Construction Projects
- Mining
Heat Shrink Conversion Kits
3/C Termination Conversion Kits
| 3/C Outdoor Conversion Kit with Boot | 3/C Indoor Conversion Kit without Boot | 5 – 8 kVG or EG Series | 15 kVG or EG Series | 25 kVG or EG Series | 35 kVG or EG Series |
| CT 3MODA01 | CT 3MODW | CT 081/082 | |||
| CT 3MODA | CT 3MODX | CT 083 | CT 151/152 | CT 251 | |
| CT 3MODB | CT 3MODY | CT 084/085 | CT 153/154 | CT 252/253 | CT 351/352 |
Kit Contents:
- Outdoor kits contain rejacketing tubes, sealant, cable breakout boot
- Indoor kits contain rejacketing tubes for phase and ground conductors, sealants
3/C Joint Conversion Kits (Unarmored)
Converts 3-1/C Joint Kits into 1-3/C Joint Kits
| 3/C Joint Conversion Kit | 5 – 8 kV Joint Kits | 15 kV Joint Kits | 25 kV Joint Kits | 35 kV Joint Kits |
| CJ 3MOD1 | CJ N51, CJ 821 | |||
| CJ 3MOD2 | CJ N52, CJ 822, CJ 823 | |||
| CJ 3MOD3 | CJ 824, CJ 825 | CJ 1521, CJ 1522 | CJ 2521 | |
| CJ 3MOD4 | CJ 1523, CJ 1524 | CJ 2522, CJ 2523 | CJ 3521, CJ 3522, CJ 3523 |
Kit Contents:
- Rejacketing wraparound sleeves and sealant strips
3/C Joint Conversion Kits (Armored)
Converts 3-1/C Joint Kits into 1-3/C Armored Joint Kits
| 3/C Armored Joint Conversion Kit | 5 – 8 kV Joint Kits | 15 kV Joint Kits | 25 kV Joint Kits | 35 kV Joint Kits |
| CJ 3AMOD1 | CJ N51, CJ N52, CJ 821 | |||
| CJ 3AMOD2 | CJ N53, CJ 822, CJ 823 | |||
| CJ 3AMOD3 | CJ 824, CJ 825 | CJ 1521, CJ 1522, CJ 1523, CJ 1524 | CJ 2521, CJ 2522 | CJ 3521 |
| CJ 3AMOD4 | CJ 2523 | CJ 3522, CJ 3523 |
- Select the 3/C conversion kit based on the voltage class, joint kit type and whether it’s armored or not
- Example: for CJ 823 Joint Kits, select CJ 3AMOD2 kit to convert 3-1/C to 3/C armored cable joint kit configuration
