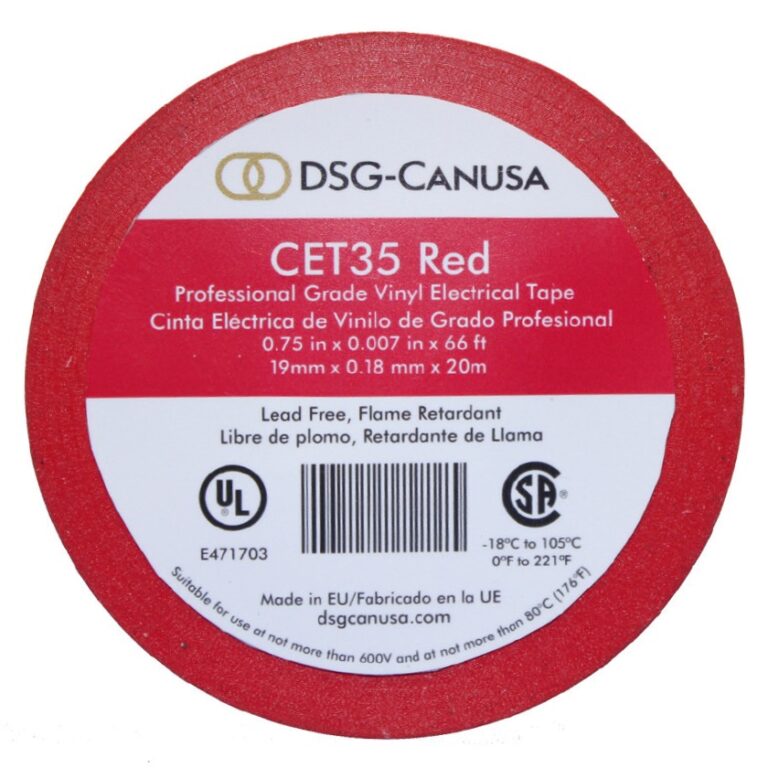

CET35
Professional grade color coding vinyl electrical tape
All weather, professional grade, pressure sensitive vinyl tape that is available in nine colors for color coding and insulating. Cold and weather resistant. Flame retardant. Use CET35 for quick identification of electrical circuits, containers, and conduit systems, as well as primary insulation for splices at not more than 600 volts.
Features and Benefits
- 7 mil thickness
- Cold and weather resistant
- High dielectric strength
- Highly elastic
- Highly conformable
- High UV resistance
- Flame retardant
- Highly resistant to sun, water, oil, acids, alkalies, corrosive chemicals
- Lead free
Standards
- ASTM D 3005, Type I
- ASTM D 1000
- HH-1595C/A-A-55809A
- EN 60454-3-1,Type 11
- UL510
- CSAC22.2no.197
Typical Applications
Quick identification of electrical phases, circuits, feeders and branches, identification of container contents, marking of piping and conduit systems and as a warning tape, primary insulation for splices up to 600 volts
Storage
- Store the product in its original packaging in a clean dry place and placed in a horizontal position under cover in temperature conditions between 5°C to 35°C (41°F to 95°F).
- Stock rotation is recommended.
Market/Applications
- OEM
- Power Distribution
- Power Distribution – LV
- Industrial
- Power Distribution – MV
- Utility
- Mining
Ordering
- Please specify the product name/order reference number and color.
- Order Example: CET35 Red
| Order Number | Color | Thickness | Width | Length | |||
| mm | in | mm | in | m | ft | ||
| CET35 Red | Red | 0.18 | 0.007 | 19 | 0.75 | 20 | 66 |
| CET35 White | White | 0.18 | 0.007 | 19 | 0.75 | 20 | 66 |
| CET35 Blue | Blue | 0.18 | 0.007 | 19 | 0.75 | 20 | 66 |
| CET35 Yellow | Yellow | 0.18 | 0.007 | 19 | 0.75 | 20 | 66 |
| CET35 Orange | Orange | 0.18 | 0.007 | 19 | 0.75 | 20 | 66 |
| CET35 Violet | Violet | 0.18 | 0.007 | 19 | 0.75 | 20 | 66 |
| CET35 Brown | Brown | 0.18 | 0.007 | 19 | 0.75 | 20 | 66 |
| CET35 Gray | Gray | 0.18 | 0.007 | 19 | 0.75 | 20 | 66 |
| CET35 Green | Green | 0.18 | 0.007 | 19 | 0.75 | 20 | 66 |
