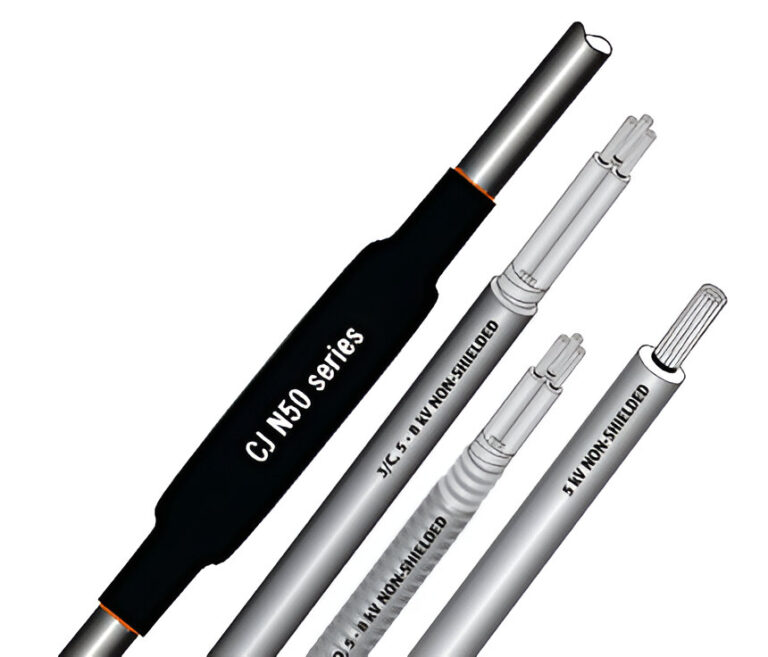

CJ N50 Series
Heat shrink medium voltage joints
Heat shrink splices for single, three core and three core armored, 5 kV through 8 kV, XLPE and EPR non-shielded cables for the utility and construction markets.
Features and Benefits
- Fast, consistent installation means lower installed costs
- Installation environment: use of torch adds flexibility to cable preparation in any climate
- Heat activated seal ensures maximum protection against moisture ingress
- Customer tailored with options to your exacting needs
- Lightweight construction requires no additional support
- Wide cable ranges for reduced inventory requirements
- Tough abrasion resistant outer covering protects against damage from improper backfill
- Slim profile allows installation in confined areas
Standards
- IEEE 404-2000
Product Line
Note: CJ N50 series single core kits can be converted to 3/C and 3/C armored kits by purchasing a CJ3MOD or CJ3AMOD conversion kit. Refer to pages 107 and 108 for details.
Market/Applications
- Transit
- Water/Waste Water Treatment
- Shipboard
- Communication Power & Control
- Industrial Construction/Automation
- Civil Construction Projects
- Industrial
- Communications Cable Splice & Protection
- Petrochem/Pulp & Paper
- Commercial Construction Projects
- Mining
Ordering
- Select the splice kit size for the non-shielded cable to be spliced.
- Confirm that the minimum and maximum cable dimensions are not exceeded. When at the high end of the conductor range it may be necessary to select the next larger kit size. Dimensions are based on the cable dimensions in the ICEA cable standards.
- To include a cable preparation kit with the splice kit add the suffix to the end of the order number. FOR EXAMPLE: a 5 kV splice for 2/0 cable with a cable preparation kit would be CJ N51
Product Properties
Voltage Class 5 – 8 kV
| Order Number | Conductor Size Range | Insulation O.D. Range | Jacket O.D. Max | Connector Dimensions | Standard Package | |||||
| O.D. Max | Length Max | |||||||||
| 1/C Cable | ||||||||||
| CJ N51 | #4 – 2/0 AWG | 0.35 – 0.75 | 9 – 19 | 0.85 | 22 | 0.65 | 17 | 3.00 | 76 | 3 – 1/C |
| CJ N52 | 1/0 – 350 kcmil | 0.55 – 1.05 | 14 – 27 | 1.20 | 30 | 1.00 | 26 | 4.00 | 102 | 3 – 1/C |
| CJ N53 | 300 – 1000 kcmil | 0.95 – 1.65 | 24 – 47 | 1.85 | 47 | 1.85 | 47 | 6.00 | 154 | 3 – 1/C |
| 3/C Cable | ||||||||||
| CJ N351 | #4 – 2/0 AWG | 0.35 – 0.75 | 9 – 19 | 2.5 | 64 | 0.65 | 17 | 3.00 | 76 | 1 – 3/C |
| CJ N352 | 1/0 – 350 kcmil | 0.55 – 1.05 | 14 – 27 | 3.5 | 89 | 1.00 | 26 | 4.00 | 102 | 1 – 3/C |
| CJ N353 | 300 – 1000 kcmil | 0.95 – 1.65 | 24 – 47 | 4.5 | 114 | 1.85 | 47 | 6.00 | 154 | 1 – 3/C |
| 3/C Armored Cable | ||||||||||
| CJ N3A51 | #4 – 2/0 AWG | 0.35 – 0.75 | 9 – 19 | 2.5 | 64 | 0.65 | 17 | 3.00 | 76 | 1 – 3/C |
| CJ N3A52 | 1/0 – 350 kcmil | 0.55 – 1.05 | 14 – 27 | 3.5 | 89 | 1.00 | 26 | 4.00 | 102 | 1 – 3/C |
| CJ N3A53 | 300 – 1000 kcmil | 0.95 – 1.65 | 24 – 47 | 4.5 | 114 | 1.85 | 47 | 6.00 | 154 | 1 – 3/C |
