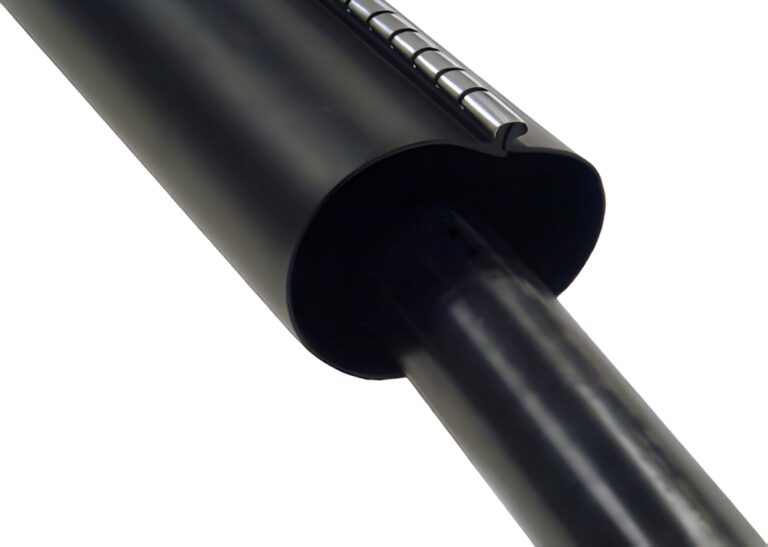

CCRDW
Heat shrinkable cable repair sleeve
Adhesive-lined, heat shrinkable wraparound sleeve with a flexible stainless steel locking channel. Used for general re-jacketing and sealing applications, protection of damaged cable or as outer jacket on XLPE Copper Telecom cable joints from 10 pair to 2000 pair cable.
Features and Benefits
- Provides water tight seal upon recovery
- Excellent mechanical strength
- Application procedure is quick, simple and clean
- Thermochromatic paint that changes color upon correct shrink temperature available on request
- Sleeve can be cut to suit shorter application requirements
- Stainless steel channel provides permanent closure system
- Reinforced version available for high impact requirements or special direct burial installations
- Easy to install in situ over live cable without cutting the cable or shutting down power
- Length up to 1,5m
- Shrink ratio: >3:1
- Continuous operating temperature: -35°C to 100°C
- Shrink temperature: 120°C
Typical Applications
Electrical insulation of in-line splices, cable jacket repair, re-jacketing cover for power cables
Market/Applications
- Transit
- Water/Waste Water Treatment
- Shipboard
- OEM
- Transit
- Communication Power & Control
- Power Distribution
- Industrial Construction/Automation
- Civil Construction Projects
- Power Distribution – LV
- Industrial
- Communications Cable Splice & Protection
- Petrochem/Pulp & Paper
- Utility
- Commercial Construction Projects
- Mining
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK)
- Please specify the product name, order number and options you require
- Order example: CCRDW 105/30 black, 1.000 pcs
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.

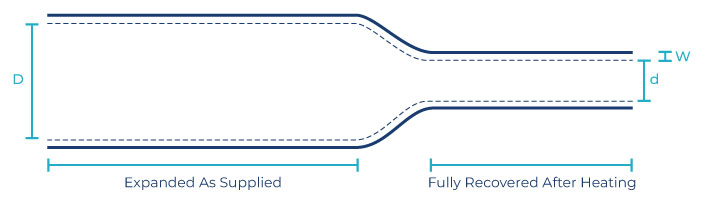

| Order Number | Expanded | Recovered | Delivery Units | ||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Total Wall Thickness (Nom) W |
Length 1.00m / 39 |
||||
| mm | in | mm | in | mm | in | pcs | |
| 50/10 | 50.0 | 1.969 | 10.0 | 0.394 | 2.30 | 0.091 | 10 |
| 75/15 | 75.0 | 2.953 | 15.0 | 0.591 | 2.40 | 0.094 | 10 |
| 105/30 | 105.0 | 4.134 | 30.0 | 1.181 | 2.40 | 0.094 | 10 |
| 137/34 | 137.0 | 5.394 | 34.0 | 1.339 | 2.50 | 0.098 | 5 |
| 160/42 | 160.0 | 6.299 | 42.0 | 1.654 | 2.50 | 0.098 | 5 |
| 200/48 | 200.0 | 7.874 | 48.0 | 1.890 | 2.70 | 0.106 | 5 |
| 240/65 | 240.0 | 9.449 | 65.0 | 2.559 | 2.90 | 0.114 | 5 |
