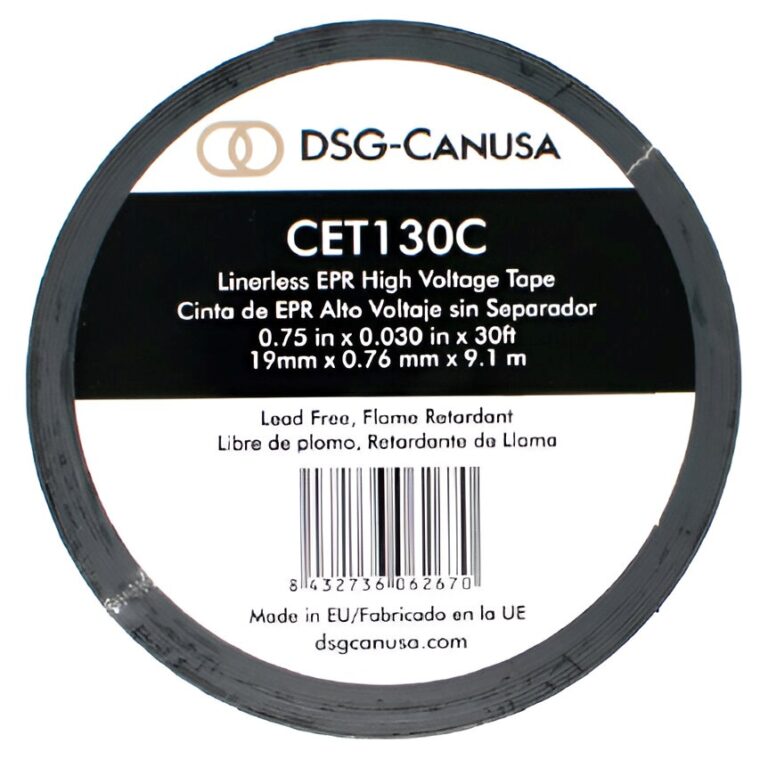

CET130C

Linerless EPR high voltage insulating and jacketing tape

EPR, self bonding, high voltage tape for insulating and jacketing splices through 69kV. The linerless feature permits much quicker taping speeds than tape with a liner and yields a uniform, void-free build-up. CET130C is compatible with all extruded cable insulations and the excellent stretch allows conformance to the most complex shapes and contours.

Features and Benefits

30 mil thickness
Linerless
Self bonding
Outstanding corona and ozone resistance
High thermal conductivity
Flame Retardant
UV Resistant
Lead Free
Excellent moisture, corrosion and chemical resistance
Easy to apply

Standards

ASTM D-4388
HH-I-553C

Typical Applications

Insulating and jacketing of splices on power cables from 600 volts through 69,000 volts, building stress cones on power cable through 35kV, moisture proofing electrical connections, bus bar insulation

Storage

Store the product in its original packaging in a clean dry place and placed in a horizontal position under cover in temperature conditions between 5°C to 35°C (41°F to 95°F).
Stock rotation is recommended.
