DERAY®-BIOK
Polyolefin insulation cap

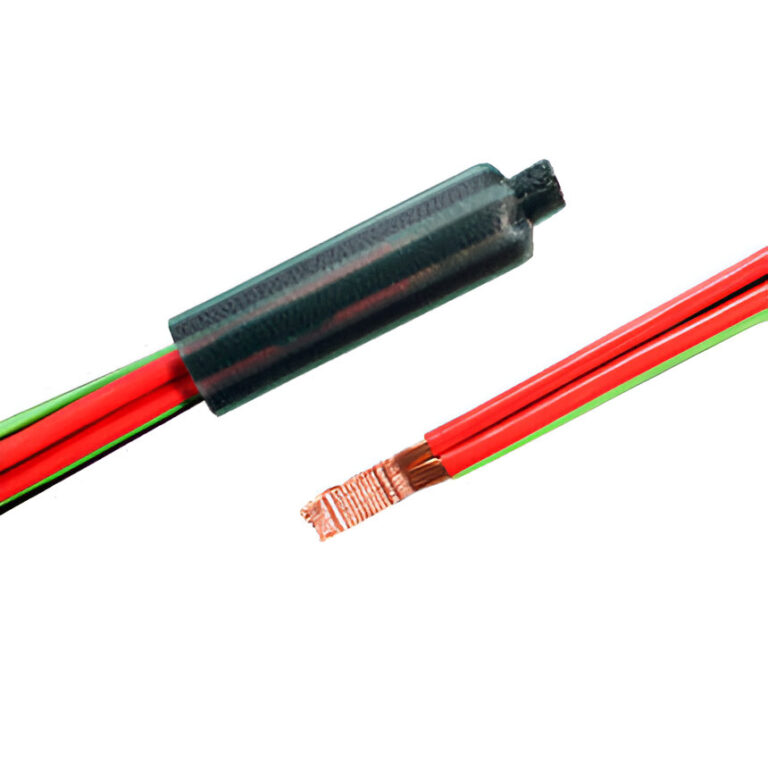

Non-shrinkable insulation cap with integral butyl liner for insulation of end splices in wire harnesses and electronic components.
Features and Benefits
- Halogen-free
- Easy and low-cost installation without processing appliances
- Good adhesion to the object due to the interior lining with butyl rubber strips
- Good resistance to aggressive media and fuel
- Good adhesion to various types of insulation material such as PVC, VPE, PP-EPDM
- Translucent material allows optimum positioning
- Continuous operating temperature: -35°C to 85°C
Standards
- Approved to all major Automotive OEM specifications
Typical Applications
Electrical insulation of end splices, mechanical protection of end splices
Market/Applications
- Automotive
Ordering
- Select options:
-
- Color: Black-Clear (BK), Grey-Clear (GY), Yellow-Clear (YL), Green-Clear (GR), Blue-Clear (BL), White-Clear (WT), Clear (CL)
- Please specify the product name, order number and options you require
- Order example: DERAY®-BIOK 9205542110 or 5.5x42mm, yellow-clear
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.

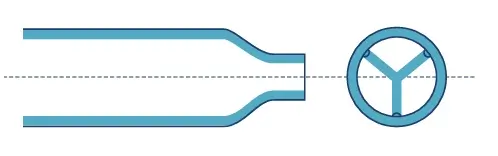

| Order Number | Dimension | Delivery Units | |||||
| Internal Diameter (Min) D |
Cut Length | Cross Section Range | Colour | Pieces | |||
| mm | in | mm | in | mm2 | |||
| 9203042050 | 3.0 | 0.118 | 42.0 | 1.65 | 1.4 -2.5 | grey-clear | 12,000 |
| 9203542110 | 3.5 | 0.138 | 42.0 | 1.65 | 2.5-2.9 | yellow-clear | 10,000 |
| 9204042550 | 4.0 | 0.157 | 42.0 | 1.65 | 2.9-3.6 | green-clear | 8,000 |
| 9205042660 | 5.0 | 0.197 | 42.0 | 1.65 | 3.6-4.1 | blue-clear | 6,000 |
| 9205542110 | 5.5 | 0.217 | 42.0 | 1.65 | 4.1-4.5 | black-clear | 5,000 |
| 9206042550 | 6.0 | 0.236 | 42.0 | 1.65 | 4.1-5.3 | green-clear | 4,000 |
| 9207042050 | 7.0 | 0.276 | 42.0 | 1.65 | 5.3-6.5 | yellow-clear | 4,000 |
| 9209545660 | 9.5 | 0.374 | 45.0 | 1.77 | 6.5-7.5 | clear | 2,000 |
| 9212045050 | 12.0 | 0.472 | 45.0 | 1.77 | on demand | white-clear | 1,000 |
