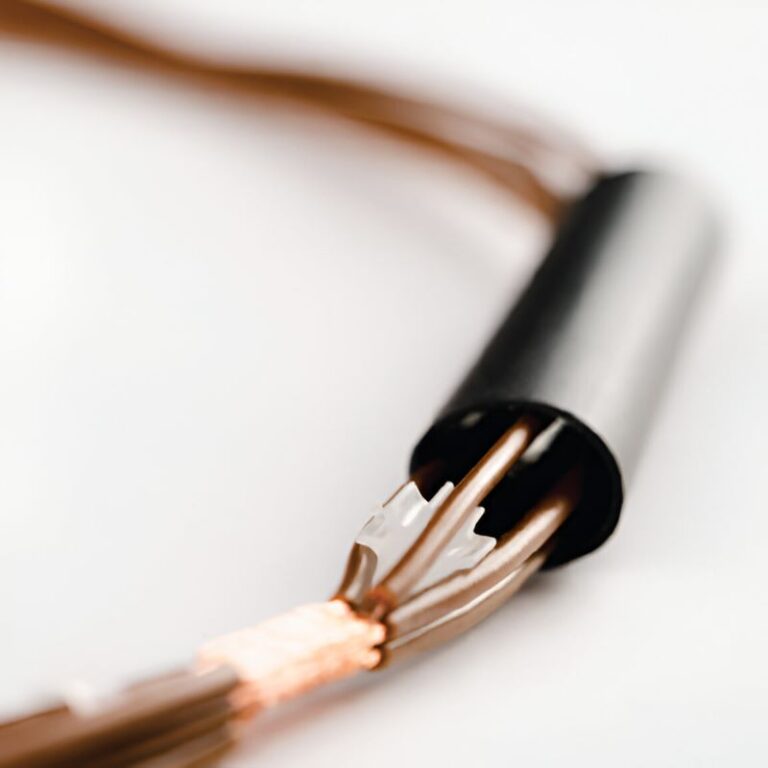

DERAY®-UMS
Adhesive lined crosslinked polyolefin
Adhesive lined heat shrink tubing specifically designed to insulate, seal and protect splices and ring terminals in automotive wire harnesses.
Features and Benefits
- High shrink ratio to fit varying splice configurations
- Seals and protects against water, moisture, and chemicals
- Adhesive bonds readily to PVC, XLPE, and PP-EPDM cable jackets
- Quick installation
- Shrink ratio: 4:1
- Continuous operating temperature: -40°C to 125°C
- Shrink temperature: 120°C min.
Standards
- Ford ESLU5T-1A263-AA (CCC41A)
- LV312-3
Typical Applications
Environmental sealing of in-line splices, Sealing and strain relief of connectors and ring terminals, Abrasion protection and electrical insulation of automotive wiring harness splices
Markets:
- Automotive
- Industrial
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK), Transparent (CL)
Please specify the product name, order number and options you require:
- Example: DERAY®-UMS, size 3, 65 mm, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery units | |
| Internal Diameter (Min) D | Internal Diameter (Max) d | Total Wall Thickness (Nom) W | Lengths | |
| mm (in) | mm (in) | mm (in) | mm (in) | |
| 1 | 6.0 (0.236) | 1.2 (0.047) | 1.35 (0.053) | 50 (1.97) |
| 2 | 8.0 (0.315) | 1.6 (0.063) | 1.75 (0.069) | 50 (1.97) |
| 3 | 12.0 (0.472) | 2.5 (0.098) | 2.35 (0.093) | 65 (2.56) |
| 4 | 18.0 (0.709) | 4.5 (0.177) | 2.65 (0.104) | 75 (2.955) |
