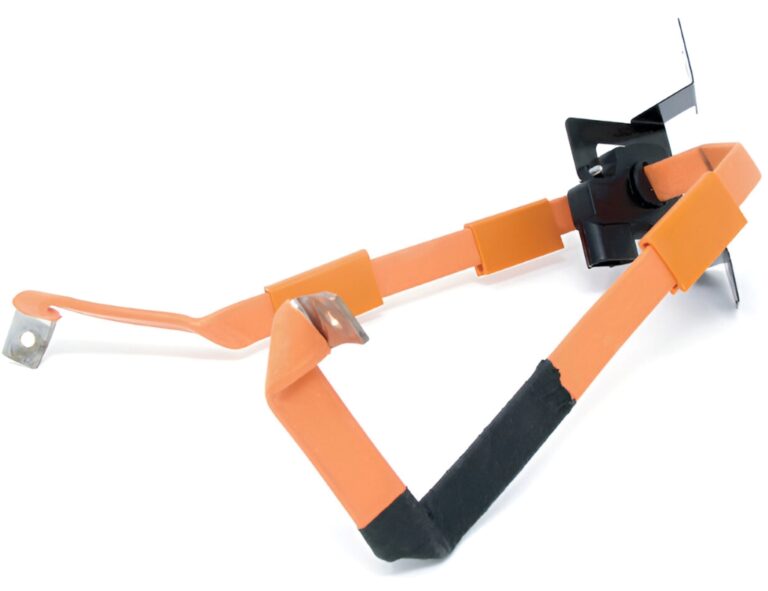

CPX 100 EV
Thin wall crosslinked polyolefin bus bar covering
Flexible, durable heat shrink tubing suited for multi-element flexible bus bars and EV power distribution protection.
Features and Benefits
- Flame retardant (colors only)
- Resistant to common fluids and solvents
- Shrink ratio: 2:1
- Continuous operating temperature: -55°C to 135°C
- Shrink temperature: 90°C min.
Standards
- Approved to major automotive OEM specifications
Typical Applications
Electrical insulation of bus bars and terminals, industry standard orange color to signify vehicle high voltage
Market/Applications
- Single Wall
- Automotive
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Orange
- Length: Spool or custom length
- Please specify product name and size
- Example: °CPX 100 EV, 0750, orange, 100ft
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |||||
| Internal Diameter (Min) D | Internal Diameter (Max) d | Wall Thickness (Nom) W | Lengths | |||||
| mm | in | mm | in | mm | in | m | ft | |
| 0750 | 19.0 | 3/4 | 9.5 | 3/8 | 1.27 | 0.05 | 30 | 100 |
| 1000 | 25.4 | 1 | 12.7 | 1/2 | 1.27 | 0.05 | 30 | 100 |
