DERAY®-KYF 190 HT
Flexible thin wall Kynar®
High-temperature Kynar® thin-wall heat shrink tubing offers extreme chemical resistance. It is ideal for protecting components in a wide range of severe temperature and harsh environments.
Features and Benefits
- Highly flame retardant
- Flexible
- High temperature resistance
- Excellent chemical and solvent resistance
- Shrink ratio: 2:1
- Continuous operating temperature: -55°C to 190°C
- Shrink temperature: 175°C min.
- Additionally available in RAL2003 orange color
Standards
- UL 224 125C VW-1 – UL file # E107857
- QPL SAE AS23053/18 Class 2
Typical Applications

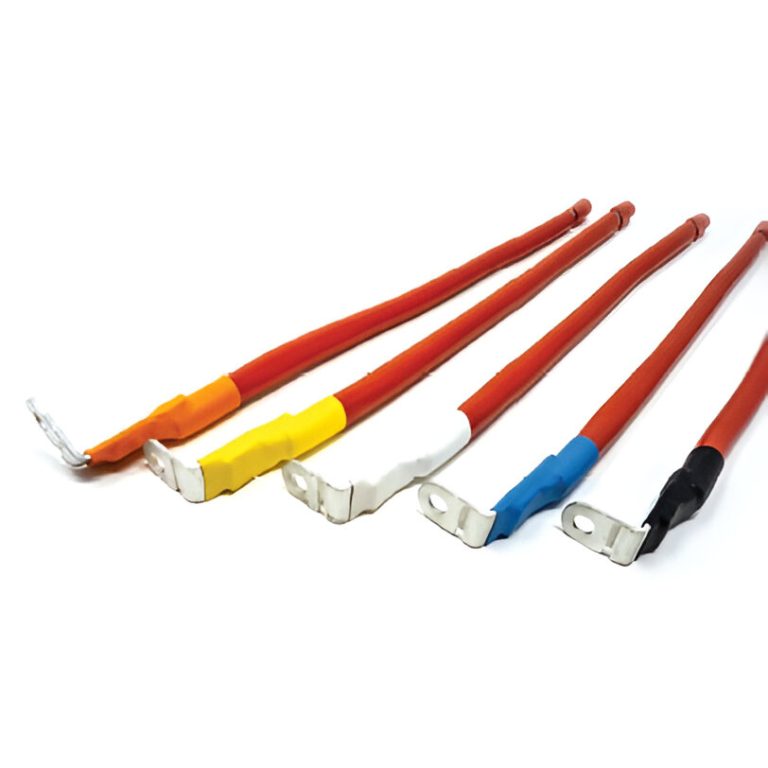

High temperature performance that meets or exceeds military, industrial and automotive standards, provides excellent electrical insulation, high flexible and abrasion resistance requiring applications, protective see-through covering for high temperature and aggressive chemical applications, protecting component for connectors and HV cable lugs in electric vehicles
Markets
- Automotive
- Industrial
- Industrial OEM
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK), orange (OE), yellow (YL), blue (BL), pink (PK)
- Please specify the product name, order number and options you require:
- Example: DERAY®-KYF 190 HT, 0125 or 1/8 in, blue
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |
| Diameter (Min) D | Diameter (Max) d | Total Wall Thickness (Nom) W | Spool | |
| mm (in) | mm (in) | mm (in) | m (ft) | |
| 0047 | 1.2 (3/64) | 0.6 (0.024) | 0.24 (0.009) | 300 (984) |
| 0063 | 1.6 (1/16) | 0.8 (0.031) | 0.24 (0.009) | 300 (984) |
| 0094 | 2.4 (3/32) | 1.2 (0.047) | 0.24 (0.009) | 300 (984) |
| 0125 | 3.2 (1/8) | 1.6 (0.063) | 0.24 (0.009) | 300 (984) |
| 0187 | 4.8 (3/16) | 2.4 (0.094) | 0.24 (0.009) | 300 (984) |
| 0250 | 6.4 (1/4) | 3.2 (0.126) | 0.30 (0.012) | 300 (984) |
| 0375 | 9.5 (3/8) | 4.8 (0.189) | 0.30 (0.012) | 150 (492) |
| 0500 | 12.7 (1/2) | 6.4 (0.252) | 0.30 (0.012) | 100 (328) |
| 0591* | 15.0 (0.591) | 6.4 (0.252) | 0.80 (0.031) | 100 (328) |
| 0750 | 19.0 (3/4) | 9.5 (0.374) | 0.40 (0.016) | 100 (328) |
| 1000 | 25.4 (1) | 12.7 (0.500) | 0.50 (0.020) | 50 (164) |
| 1500 | 38.1 (1 1/2) | 19.0 (0.748) | 0.60 (0.024) | 50 (164) |
* Only available in orange (OE)
