DERAY®-KWS
Modified heat shrink tubing

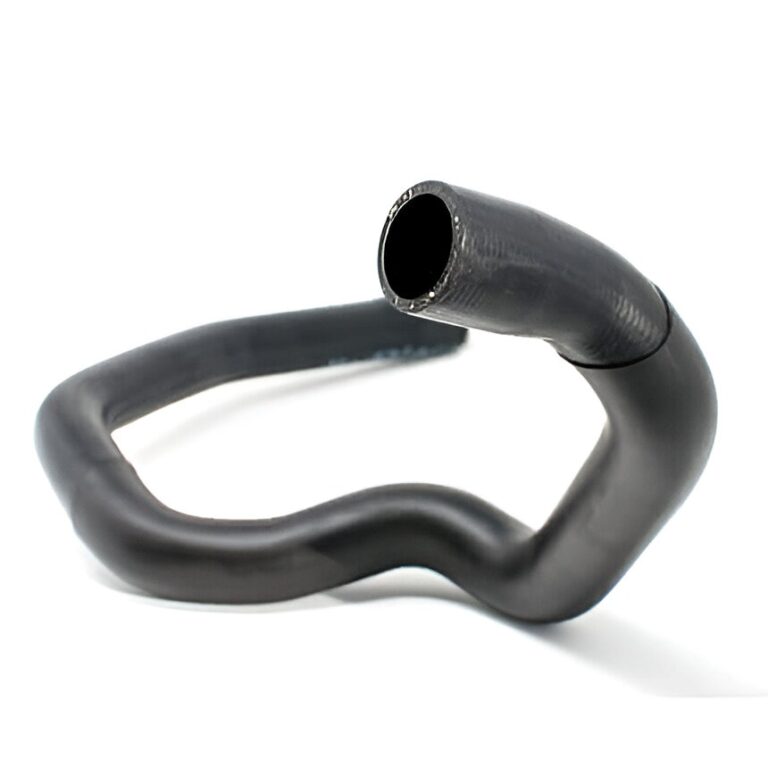

DERAY®-KWS, a modified heat shrink tubing based on cross-linked polyolefins, meets all the needs of cooling water hoses perfectly.
Features and Benefits
- Flame retardant
- Halogen-free
- Very good abrasive resistance
- Pressure pulse test passed
- Fast shrinkage on to part requiring protection
- No weld connection with the surface of the part
- No deformation of cooling water manifold during shrink process
- Surface can be printed via inkjet process
- Shrink ratio: >2:1
- Continuous operating temperature: -55°C to 135°C
- Shrink temperature: 120°C
Standards
- TL 52668 Type C
- TL 52361
- JIS D 1201 1973
- FMVSS 302
Typical Applications
Mechanical protection for cooling water hoses and other media carrying pipes
Market/Applications
- Single Wall
- Hose and Pipe Protection
- Automotive
Ordering
- Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK)
- Available without inner grooves as DERAY®-KWS
- Please specify the product name, order number and options you require
- Order example: DERAY®-KWS, 18/7mm, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Wall Thickness (Nom) W |
Spool Lengths | |||||
| mm | in | mm | in | mm | in | m | ft | |
| 18.0/7.0 | 18.0 | 0.709 | 7.0 | 0.276 | 1.10 | 0.043 | 200 | 656 |
| 25.4/12.0 | 25.4 | 1.000 | 12.0 | 0.472 | 0.75 | 0.030 | 200 | 656 |
| 39.0/13.0 | 39.0 | 1.535 | 13.0 | 0.512 | 1.15 | 0.045 | 150 | 492 |
| 51.0/22.0 | 51.0 | 2.008 | 22.0 | 0.866 | 1.00 | 0.039 | 100 | 328 |
| 60.0/22.0 | 60.0 | 2.362 | 22.0 | 0.866 | 1.00 | 0.039 | 100 | 328 |
| 76.0/38.0 | 76.0 | 2.992 | 38.0 | 1.496 | 1.50 | 0.059 | 30 | 98 |
