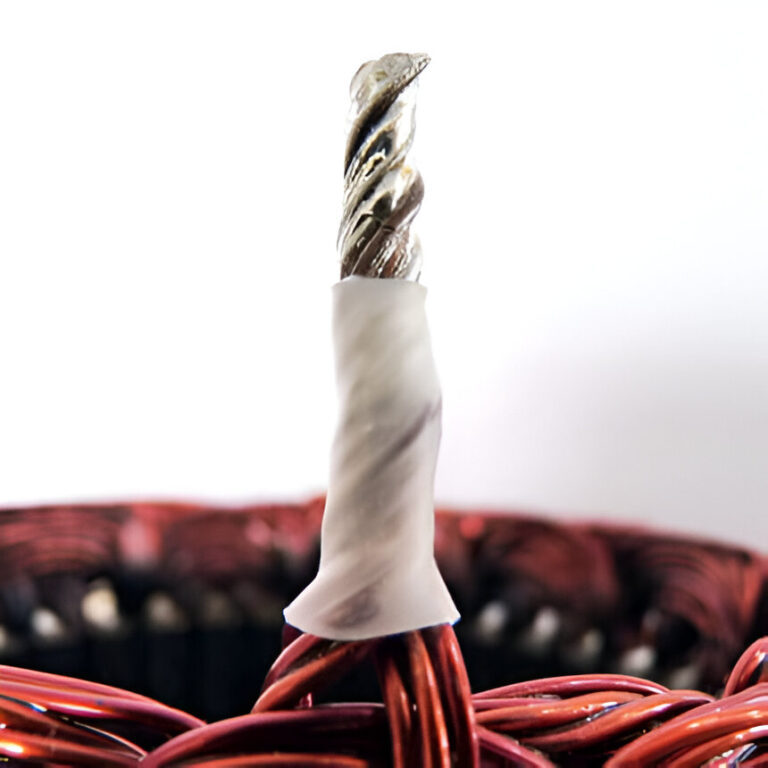

DERAY®-KY 175
Semi-Rigid Thin Wall Kynar®
Clear, thin wall Kynar® heat shrink tubing ideal for electronic, automotive and military applications requiring protection and see through inspection in aggressive environments.
Features and Benefits
- Highly flame retardant
- Semi-rigid
- High withstand to abrasion and cut-through
- Excellent chemical and solvent resistance
- Shrink ratio: 2:1
- Continuous operating temperature: -55°C to 175°C
- Shrink temperature: 175°C min.
Standards
- UL 224 125 C VW-1 – UL file # E107857
- CSA 22.2 OFT – CSA file # 066150_0_000
- DEF STAN 59-97 Type 3
- BS G198 Part 4 Type 20
- VG 95343 Part 5 Type F
- QPL SAE AS23053/8
- PAN 6491
- VW 60360-3
- CNES approved and listed in Matrex database
- ECSS-Q-ST-70-02
Typical Applications
Strain relief and insulation of high temperature wires, excellently suitable for applications where high chemical and abrasion resistance is required, all areas where outstanding electrical insulation is required
Market/Applications
- Automotive
- Industrial
- Aerospace
- Defense
- Mass Transit
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Clear (CL)
- Approval: Standard, VG or QPL
- Please specify the product name, order number and options you require.
- Example: DERAY®-KY 175, 0125 or 1/8 in, clear, VG
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.

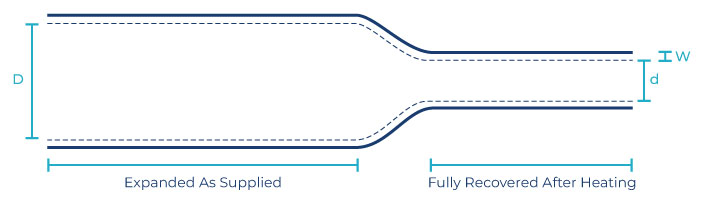

| Order Number | Expanded | Recovered | Delivery Units | ||||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Wall Thickness (Nom) W |
Spool | Lengths | |||||
| mm | in | mm | in | mm | in | m | ft | 1.22m / 48in | |
| 0047 | 1.2 | 3/64 | 0.6 | 0.024 | 0.24 | 0.009 | 300 | 984 | 25 |
| 0063 | 1.6 | 1/16 | 0.8 | 0.031 | 0.24 | 0.009 | 300 | 984 | 25 |
| 0094 | 2.4 | 3/32 | 1.2 | 0.047 | 0.24 | 0.009 | 300 | 984 | 25 |
| 0125 | 3.2 | 1/8 | 1.6 | 0.063 | 0.24 | 0.009 | 300 | 984 | 25 |
| 0187 | 4.8 | 3/16 | 2.4 | 0.094 | 0.24 | 0.009 | 300 | 984 | 25 |
| 0250 | 6.4 | 1/4 | 3.2 | 0.126 | 0.30 | 0.012 | 300 | 984 | 25 |
| 0375 | 9.5 | 3/8 | 4.8 | 0.189 | 0.30 | 0.012 | 150 | 492 | 10 |
| 0500 | 12.7 | 1/2 | 6.4 | 0.252 | 0.30 | 0.012 | 100 | 328 | 10 |
| 0750 | 19.0 | 3/4 | 9.5 | 0.374 | 0.40 | 0.016 | 50 | 164 | 10 |
| 1000 | 25.4 | 1 | 12.7 | 0.500 | 0.50 | 0.020 | 50 | 164 | 10 |
