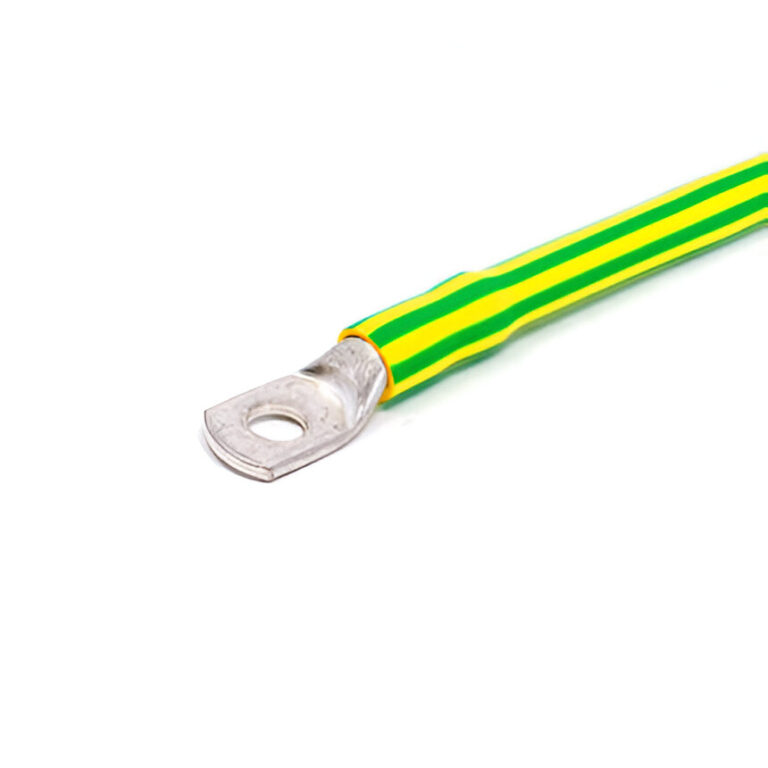

DERAY®-IGY
Thin wall crosslinked polyolefin
Yellow-green striped, quick shrinking heat shrink tubing with a high shrink ratio.
Features and Benefits
- Flame retardant
- Flexible
- Striped color combination designates international electrical grounding
- Resistant to common fluids and solvents
- Shrink ratio: 3:1
- Continuous operating temperature: -55°C to 135°C
- Shrink temperature: 90°C min.
Standards
- UL 224 125C ATF – UL file # E107857 (colors only)
- CSA 22.2 No 198.1 125C – CSA file # 065789_0_000
- DEF STAN 59-97 Type 2b
- BS G198 Part 3 Type 11B
Typical Applications
Insulating and marking of earthing conductors
Market/Applications
- Construction
- Projects
- Industrial
- Marine
- Shipboard
- Mass Transit
- Aerospace
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options
- Color: Green-yellow (GY)
- Please specify the product name, order number and options you require
- Example: DERAY®-IGY 0750, green-yellow
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | ||||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Wall Thickness (Nom) W |
Spool Lengths | Lengths | |||||
| mm | in | mm | in | mm | in | m | ft | 1.22m / 48in | |
| 0125 | 3.2 | 1/8 | 1.0 | 0.039 | 0.55 | 0.022 | 150 | 492 | 25 |
| 0187 | 4.8 | 3/16 | 1.5 | 0.059 | 0.60 | 0.024 | 75 | 246 | 25 |
| 0250 | 6.4 | 1/4 | 2.0 | 0.079 | 0.65 | 0.026 | 75 | 246 | 10 |
| 0375 | 9.5 | 3/8 | 3.0 | 0.118 | 0.75 | 0.030 | 75 | 246 | 10 |
| 0500 | 12.7 | 1/2 | 4.0 | 0.157 | 0.75 | 0.030 | 50 | 150 | 10 |
| 0750 | 19.0 | 3/4 | 6.0 | 0.236 | 0.85 | 0.033 | 30 | 96 | 10 |
| 1000 | 25.4 | 1 | 8.0 | 0.315 | 1.00 | 0.039 | 30 | 96 | 10 |
| 1535 | 39.0 | 1 1/2 | 13.0 | 0.512 | 1.15 | 0.045 | 30 | 96 | – |
