CWWT 450
Thin wall adhesive lined crosslinked polyolefin

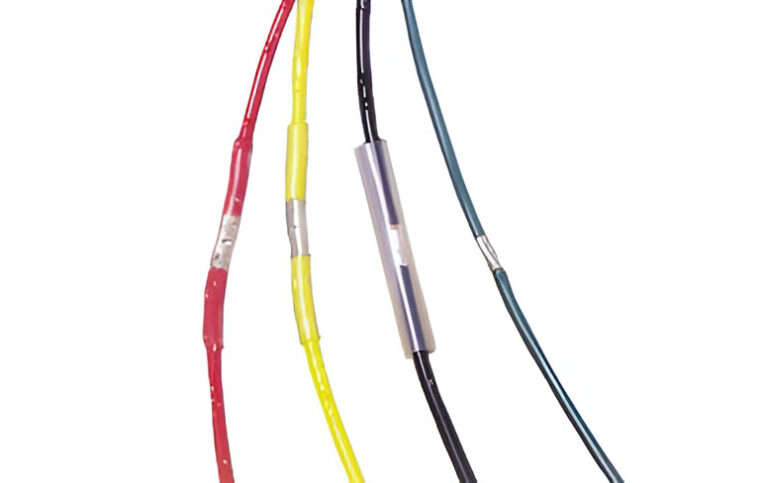

Water clear, adhesive lined, heat shrink tubing specifically designed for water well pump applications. Provides excellent clarity on recovery while insulating and protecting electrical connections
Features and Benefits
- High shrink ratio allows for a wide range of diameters
- Allows for the examination of substrate wiring
- Adhesive lined for a water tight seal
- Flexible
- Rated for 1 kV
- Shrink ratio: 4:1
- operating temperature: -55°C to 110°C
- Shrink temperature: 120°C min
Typical Applications
Environmental protection and insulation of electrical connections, see-though over protection of labels and printing, irrigation and landscape lighting systems
Market/Applications
- Civil Construction Projects
- Industrial
Ordering
- Select options:
- Color: Clear (CL)
- Please specify the product name, order number and options you require
- Order Example: CWWT 450, 0400, clear
Please contact your Customer Service Representative for information on custom sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Lengths | |||||
| Internal Diameter (Min) D | Internal Diameter (Max) d | Total Wall Thickness (Nom) W | ||||||
| mm | in | mm | in | mm | in | mm | in | |
| 0400 | 10.5 | 0.413 | 2.6 | 0.102 | 1.1 | 0.043 | 76.2 | 3 |
