DERAY®-Autoseal

Automatic sealing system for automotive electrical systems

The combination of cellulose and superabsorbent polymers will protect electronic systems throughout the system’s lifetime. To simplify production and cut costs, a fully automatic process is used to directly provide the cables with DERAY®-Autoseal.

FEATURES AND BENEFITS

  • The system works at any time again and again
  • If temperature rise, the water absorbed will evaporate
  • No need of manually fit a sealing medium
  • No assembly time needed due to fully automatic processing
  • Absorbs up to 300 times its own weight in water
  • Continuous operating temperature: -40°C to 150°C

Standards

Approved to major OEM water blocking specifications

Typical Applications

  • Sealing of automotive electrical systems
  • Water moisture ingress elimination
  • Wire harness feed-through locations

Market/Applications

  • Automotive

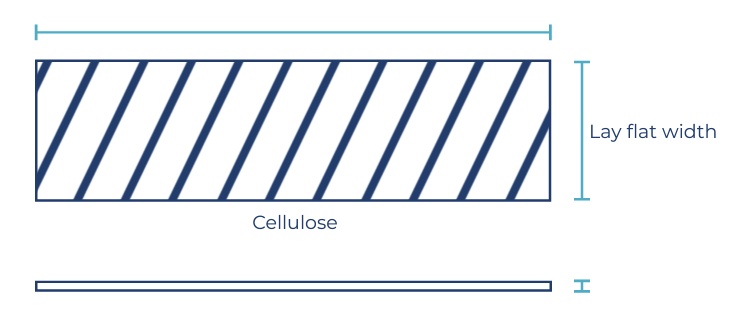

DERAY® Autoseal Diagram

Ordering

  • Please specify the product name, order number and options you require
  • Order example: DERAY®-Autoseal, 6220002100M, 40mm, 100m reel

Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.

Automatic sealing system for automotive electrical systems DERAY Autoseal

Documentation

DERAY®-Autoseal Datasheet
DERAY®-Autoseal Product Datasheet
DERAY®-Autoseal Technical Datasheet
DERAY®-Autoseal Datenblatt
DERAY®-Autoseal Produktdatenblatt
DERAY®-Autoseal Technisches Datenblatt
Contact Us



Order Number Dimensions Delivery Units
Lay Flat Width Spool
mm in m ft
6220002100M 40.0 1.57 100 328
6220002200M 80.0 3.14 200 656
