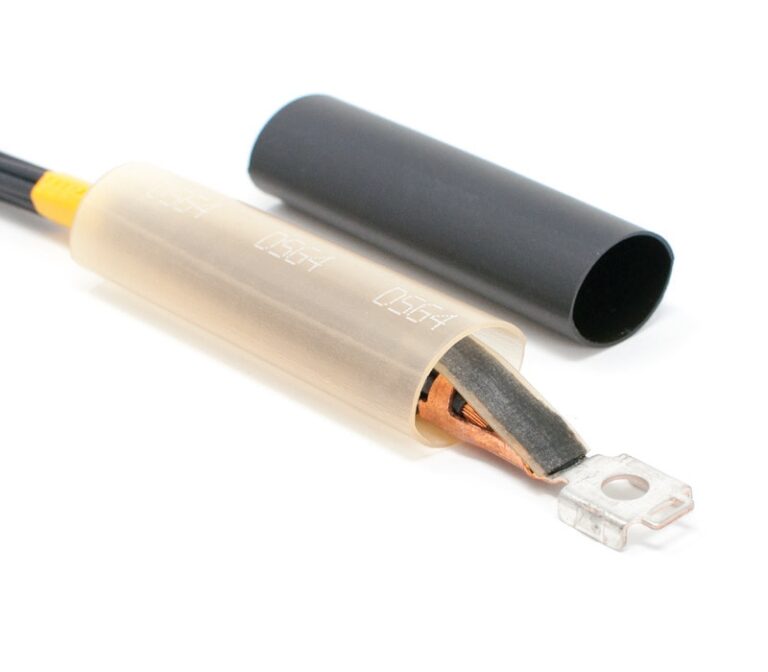

DERAY®-SpliceMeltband
Water blocking solution
The DERAY®-SpliceMeltband system seals and environmentally protects connectors and cable bundles.
Features and Benefits
- A specially designed mastic lined adhesive tape sealing system that provides longitudinal water sealing for cable bundles, plug connectors and splices
- Cables are embedded individually into the adhesive tape to ensure 100% sealing
- Good chemical and fuel resistance
- Good adhesion to PVC, XLPE and PP-EPDM wire insulating materials
Standards
- Approved to OEM longitudinal water blocking specifications
Typical Applications
Water/moisture ingress elimination, abrasion protection and strain relief, noise dampening and reduction
Market/Applications
- Dual Wall
- Splice Sealing Solutions
- Automotive
- Waterblocking
Ordering
- Select Option:
- Length: Standard spool length or cut pieces on request
- Please specify the product name, order number and options you require
- Order Example: DERAY®-SpliceMeltband, 6210001007, 10-1.5, 500 m reel
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
Installation

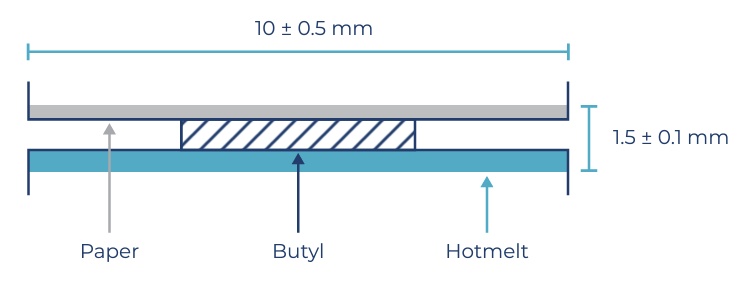

The DERAY®-SpliceMeltband system consists of two primary components:
- DERAY®-SpliceMeltband mastic adhesive strips, used to seal all of the individual elements of the cable bundle.
- DERAY®-SpliceMelt heat shrink tubing is cross-linked polyolefin tubing that is used to cover and encapsulate the entire installation.
DERAY®-WorkMan or DERAY®-DockMan shrink ovens are recommended for repeatable application.
| Order Number | Width | Thickness | Delivery Unit | |||
| mm | in | mm | in | m | ft | |
| 6210001007 | 10.0 | 0.394 | 1.50 | 0.059 | 500 | 1640 |
| 6210001507 | 15.0 | 0.591 | 1.50 | 0.059 | 500 | 1640 |
Subject to technical changes
