Wildlife Mitigation Covers for Overhead Lines
Medium voltage protection covers forinsulators, suspension clamps andconductors.
The protective covers CTSC, CCTI, CASC and CMVBP are available in different designs and sizes. They offer an effective encapsulation against accidental phase-to-phase or phase-to-ground contact caused by fauna and flora.
Features and Benefits
- Excellent anti-tracking material characteristic
- Voltage rating up to 36kV
- UV resistant
- Suitable for polymeric / ceramic / hybrid insulators and suspension clamps
- Designed to protect problem span areas
- Cost-effective and variable design on particular application situations
- Easy to install
- Plastic rivets included
- Additional rivets available on request
- Continuous operating Temperature: -40°C to 105°C
Standards
- Din VDE V 0212-490:2014
- VDE-AR-N 4210-11:2011-08
- IEC 60060-1:2010
- EN 60243-1
Typical Applications
Protection of overhead lines, protection of pole-down installations
Electrical Properties

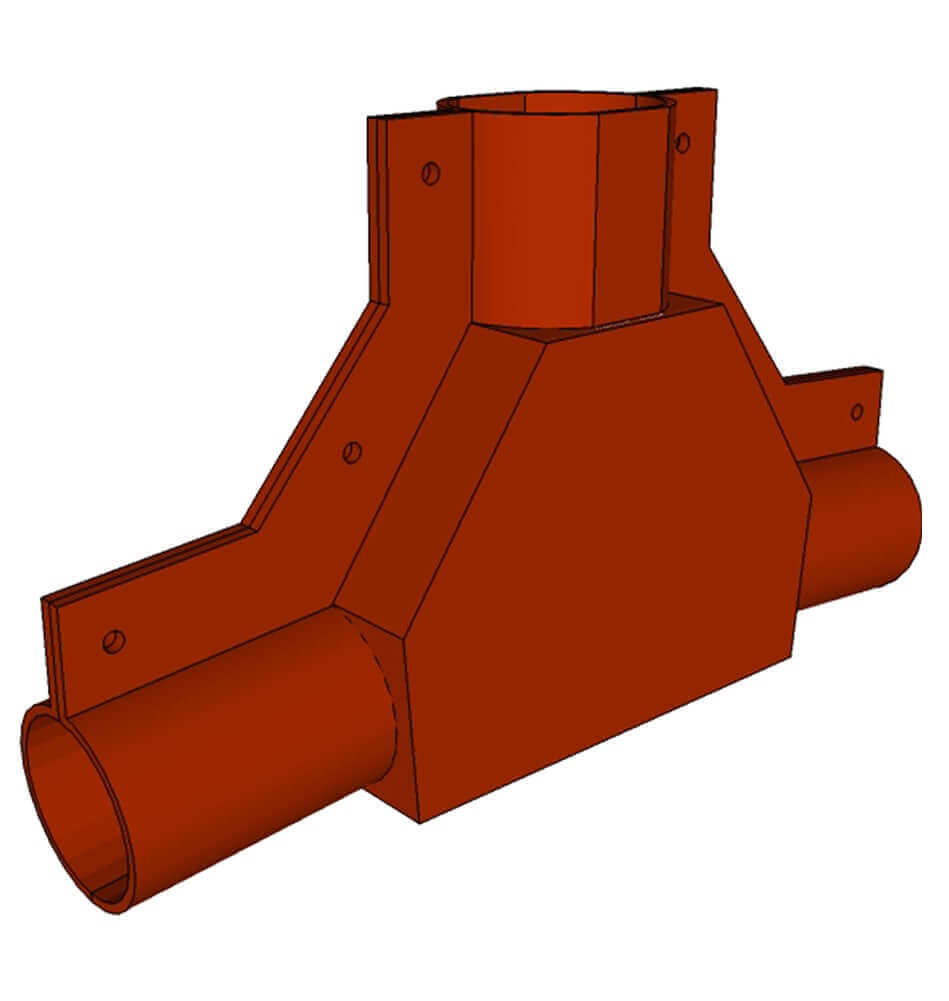

CTSC
Dimensions of T-Shaped Suspension Clamp

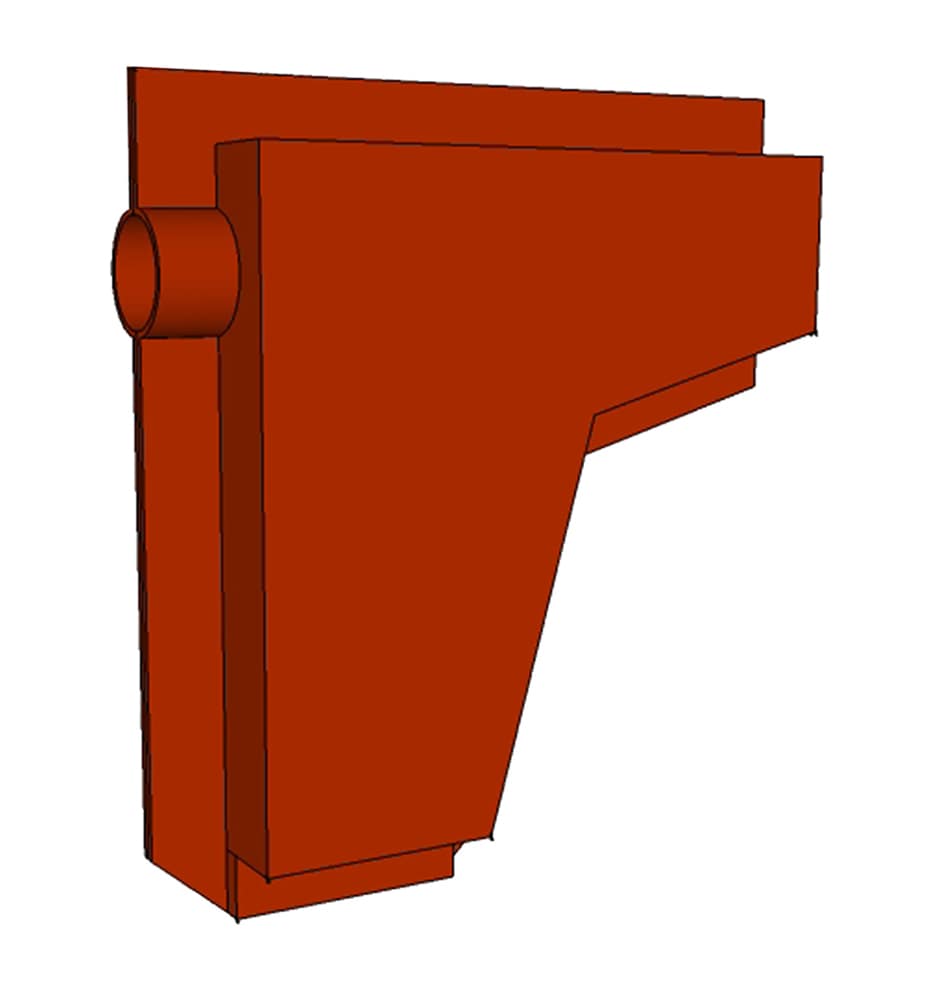

CCTI
Dimensions of Conductor to Tension Insulator
CASC
Dimensions of Angled Suspension Clamp
CMVBP
Dimensions of Bare Conductor Cover
Market/Applications
- Power Distribution
- Power Distribution – LV
- Industrial
- Utility
CTSC / CCTI / CASC/ CMVBP
Ordering
- Select options:
- Color: Red
- Dimensions: Customization to different accessories on request
- Please specify the product name, order number and options you require
- Order Example: CTSC 31/116, red, 30 m
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
