Wildlife Mitigation Covers for Substations

The protective covers CCAP, CFin, CCONEC, CCOF, CCDE and CMVBP are available in different designs and sizes. They offer an effective encapsulation against accidental phase-to-phase or phase-to-ground fault caused by fauna and flora.

Features and Benefits

  • Excellent anti-tracking material characteristic
  • Voltage rating up to 36kV
  • UV resistant
  • Suitable for polymeric / ceramic / hybrid insulators and suspension clamps
  • Designed to protect problem span areas
  • Cost-effective and variable design on particular application situations
  • Easy to install
  • Plastic rivets included
  • Additional rivets available on request
  • Continuous operating Temperature: -40°C to 105°C

Standards

  • Din VDE V 0212-490:2014
  • VDE-AR-N 4210-11:2011-08
  • IEC 60060-1:2010
  • EN 60243-1

Typical Applications

Protection of pole mounted substations, protection of air insulated substations

Electrical Properties

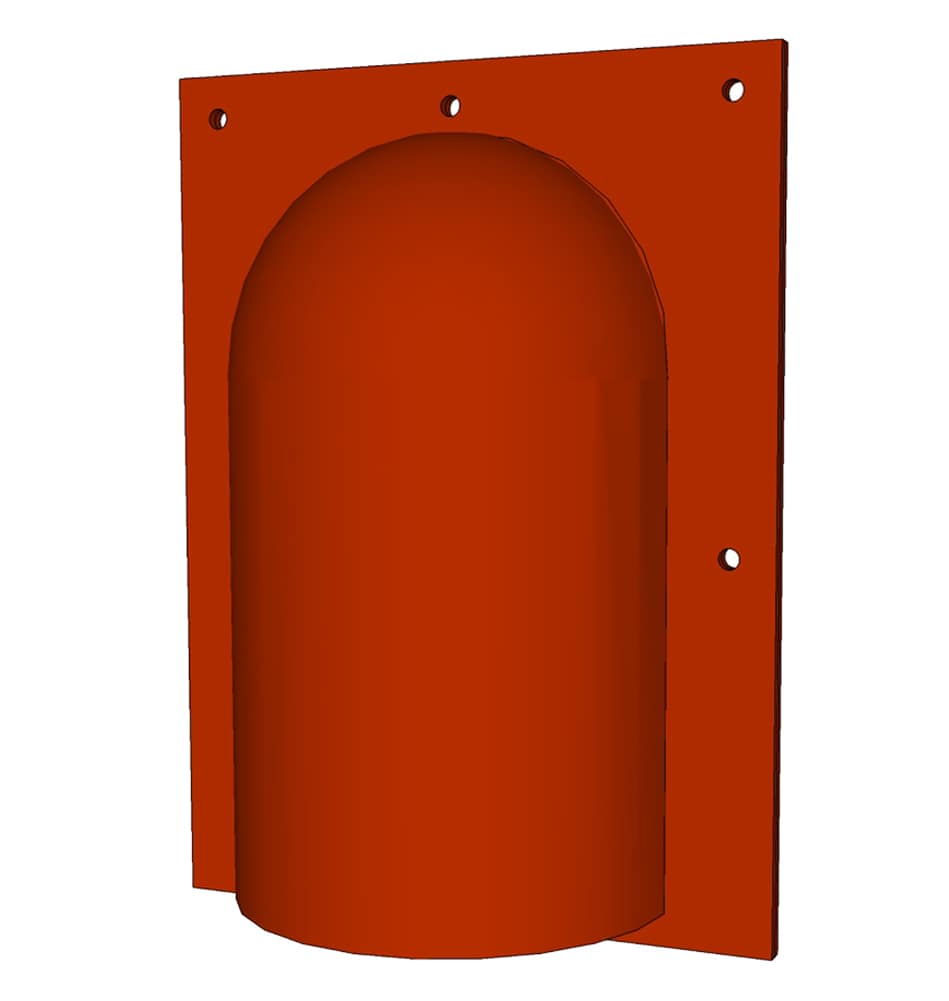

CCAP

Dimensions of Bushing Cover

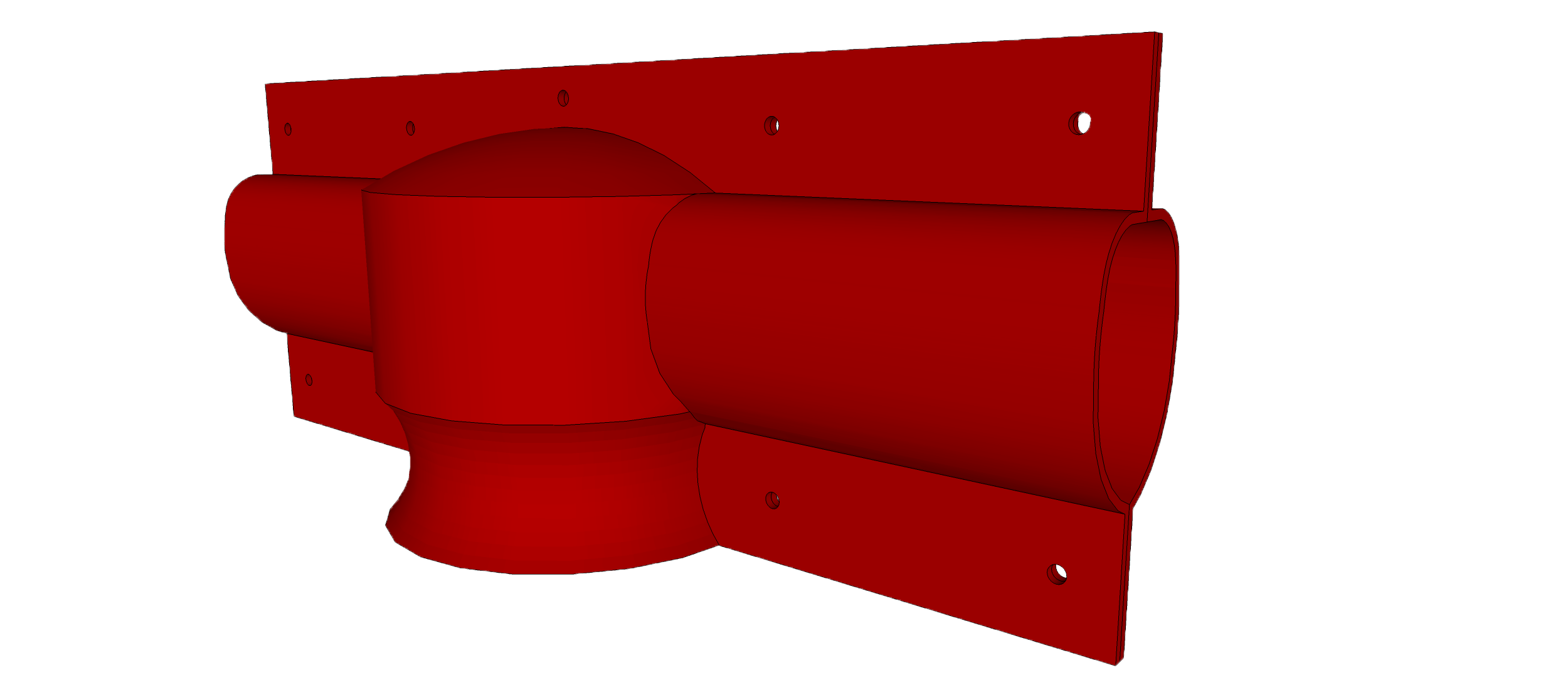

CFin

Dimensions of Standoff Insulator Cover

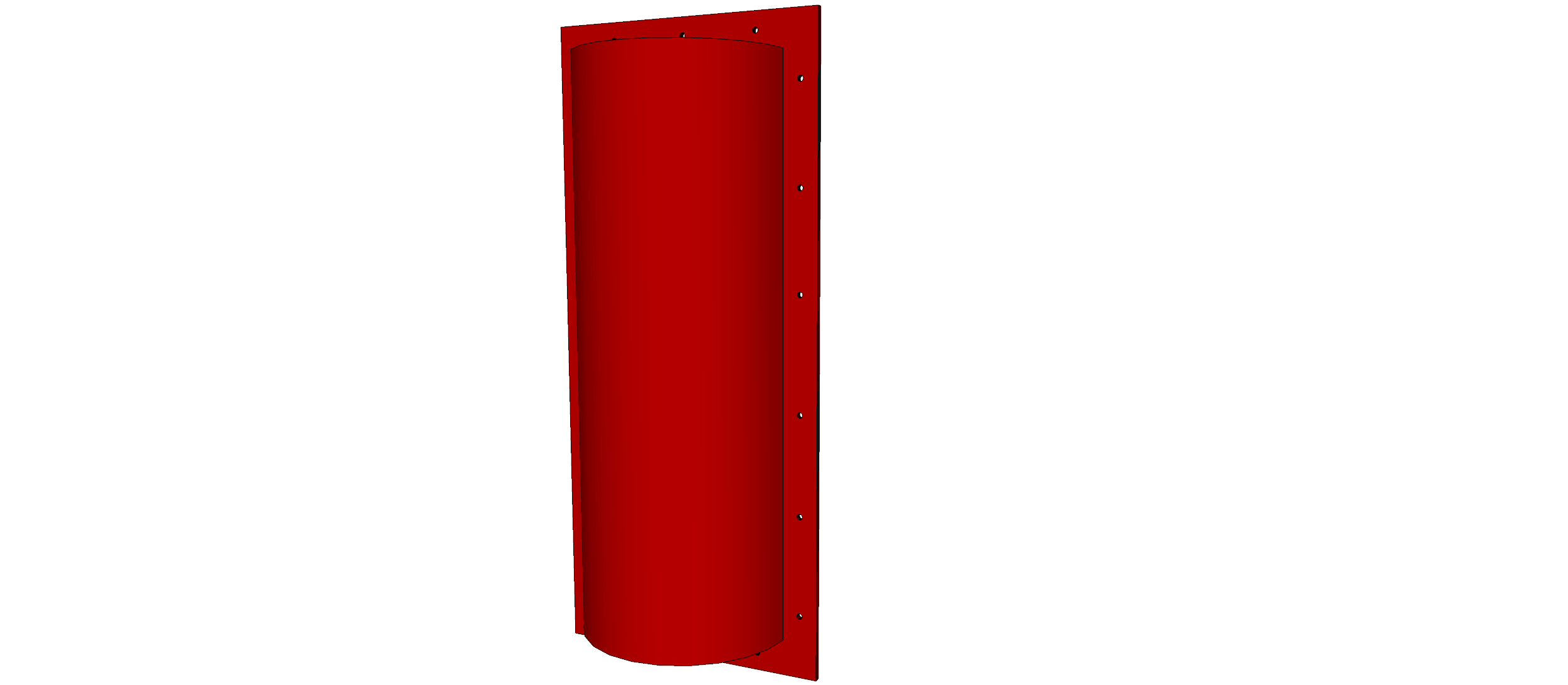

CCONEC

Dimensions of Conductor Cover

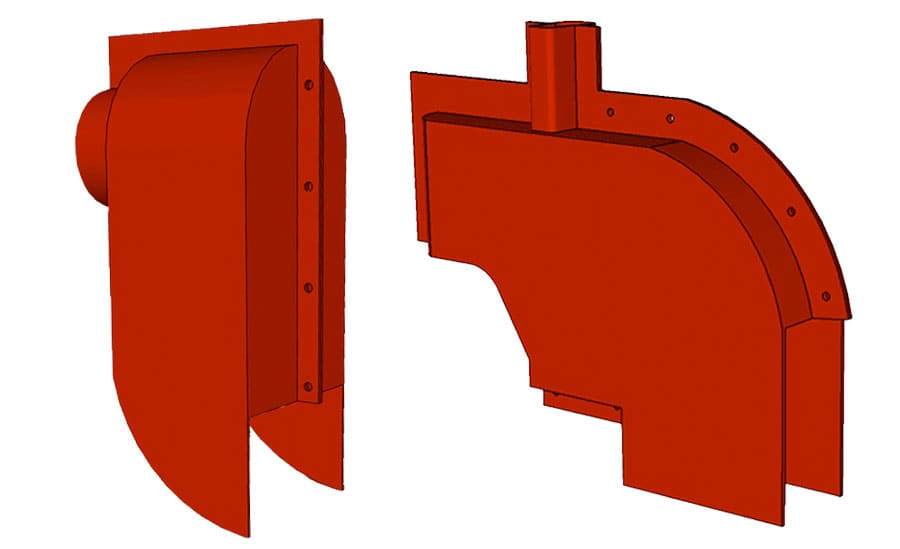

CCOF

Dimensions of Cut-Out Fuse Cover

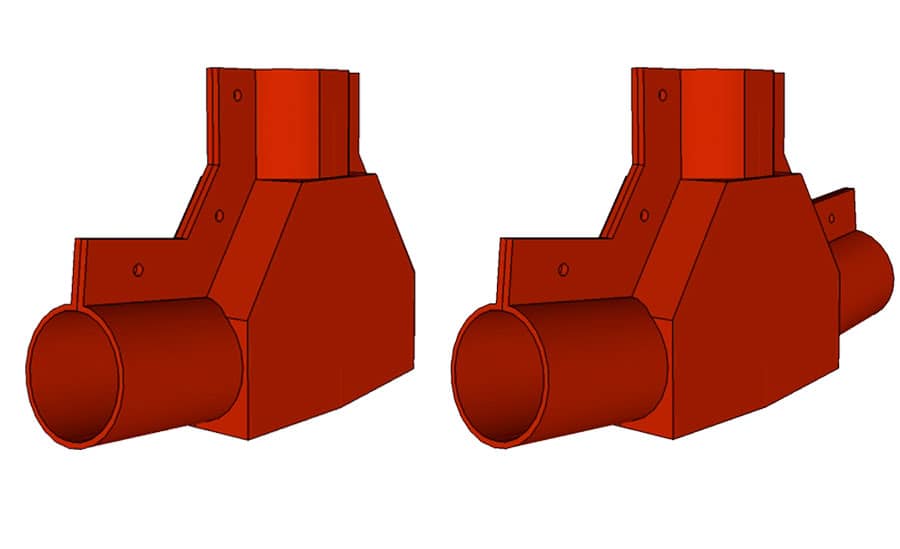

CCDE

Dimensions of Conductor to Dead End Cover

CMVBP

Dimensions of Bare Conductor Cover

Market/Applications

  • Power Distribution
  • Power Distribution – LV
  • Industrial
  • Utility



CCAP / CFin / CCONEC / CCOF / CCDE / CMVBP

Ordering

  • Select options:
    • Color: Red
    • Dimensions: Customization to different accessories on request
  • Please specify the product name, order number and options you require
  • Order Example: CCONEC 14, red, 10 pieces

Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
