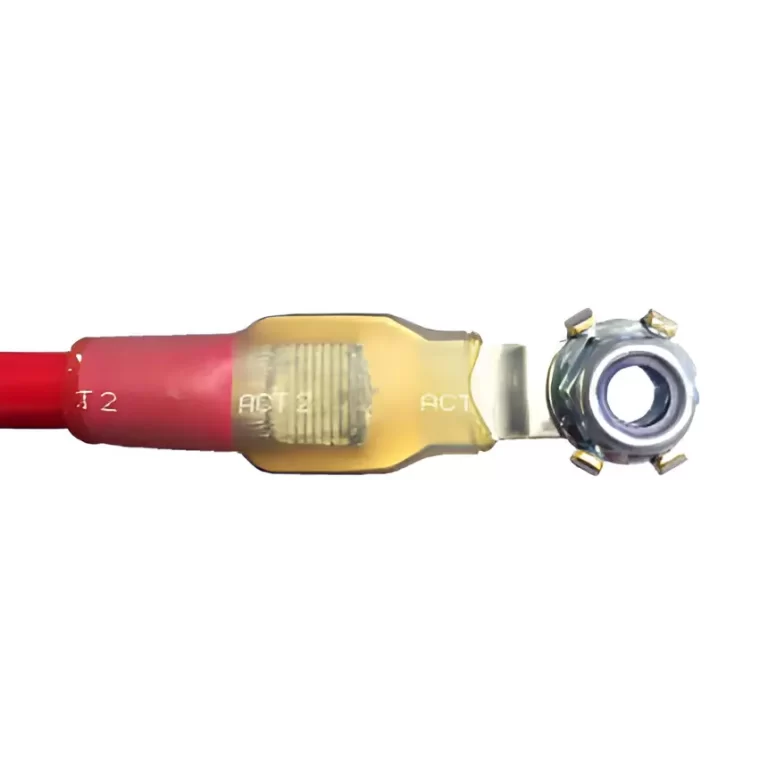

DERAY®-ACT
Adhesive lined crosslinked Polyolefin
Adhesive lined heat shrink specifically designed to insulate, seal and protect aluminum-copper flat terminals
Features and Benefits
- Seals and protect against water, moisture and chemicals
- Higher wall thickness prevents shrink tubing from bursting because of
sharp metall edges - Avoids corrosion on aluminum copper connections
- No drain of adhesive
- Shrink ratio: 3.5:1 to 5:1
- Continuous operating temperature: -40°C to 125°C
- Shrink temperature: 145°C min.
Standards
- VW 60360-3
- MBN LV 312-3
- GMW 17136
Typical Applications
Sealing of aluminium-copper flat battery terminals and eyelet terminals
Market/Applications
- Automotive
- Battery Cables
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK), clear (CL)
- Please specify the product name, order number and options you require
- Order example: DERAY®-ACT 3, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |||||
| Internal Diameter (min) D | Internal Diameter (max) d | Total Wall Thickness (nom) W | Cut Lengths | |||||
| mm | in | mm | in | mm | in | mm | in | |
| 1 | 14.0 | 0.551 | 2.5 | 0.098 | 2.70 | 0.106 | 50 | 1.97 |
| 2 | 23.0 | 0.906 | 4.5 | 0.177 | 2.80 | 0.110 | 67 | 2.64 |
| 2A | 30.0 | 1.181 | 6.0 | 0.236 | 2.80 | 0.110 | 80 | 3.15 |
| 2B | 31.0 | 1.220 | 7.0 | 0.276 | 3.30 | 0.130 | 80 | 3.15 |
| 3 | 35.0 | 1.378 | 10.0 | 0.394 | 3.10 | 0.122 | 90 | 3.54 |
