CSEC

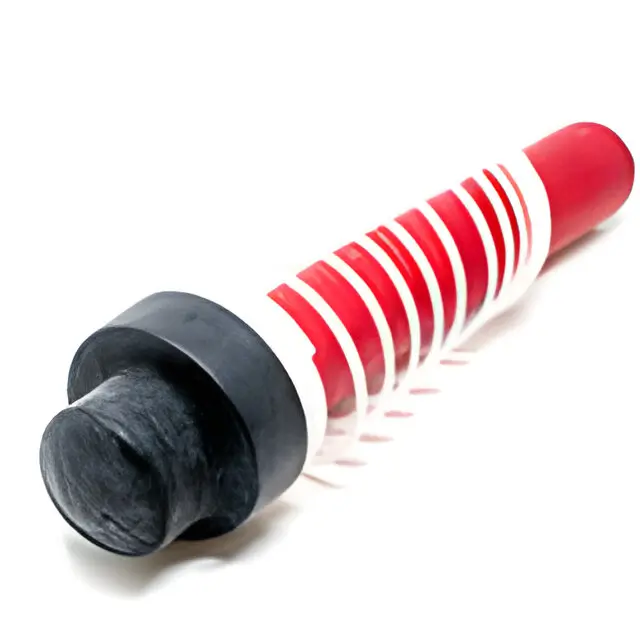

Cold shrink end caps
CSEC Series cold shrink end caps are designed to provide a reliable, moisture proof method of sealing exposed cable ends without the use of additional tools, tapes or mastics. Made of EPDM rubber, the end caps are pre- expanded over a rip core that are simple and easy to install.
Features and Benefits
- Quick and easy installation
- Accommodates a wide range of electrical cables, pipes and conduits in four different sizes
- Excellent insulation, sealing and abrasion resistance
- No tapes, mastics or heat source required
- Protects cables and pipes from exposure to moisture, contamination and corrosion
- UV, Ozone and water resistant
- Easily removable
- Continuous operating temperature: -20°C to 105°C
Market/Applications
- Transit
- Water/Waste Water Treatment
- Shipboard
- OEM
- Power Distribution
- Industrial Construction/Automation
- Power Distribution – LV
- Industrial
- Communications Cable Splice & Protection
- Petrochem/Pulp & Paper
- Utility
- Commercial Construction Projects
- Mining
Ordering
Select a dimension which will shrink snugly over the component to be covered
- Please specify the product name, order number and options you require
- Order example: CSEC-1, black, 20 pieces
Please contact your Customer Service Representative for information on custom sizes, lengths and material data sheet.
| Order Number | Application Use Range | Delivery Units | |
| in | mm | Pieces per Box | |
| CSEC – 1 | 0.46 – 0.82 | 11.6 – 20.9 | 10 |
| CSEC – 2 | 0.63 – 1.18 | 15.9 – 30.1 | 10 |
| CSEC – 3 | 1.02 – 1.94 | 26.0 – 49.2 | 10 |
| CSEC – 4 | 1.79 – 3.32 | 45.5 – 84.3 | 10 |
