CCB-CON

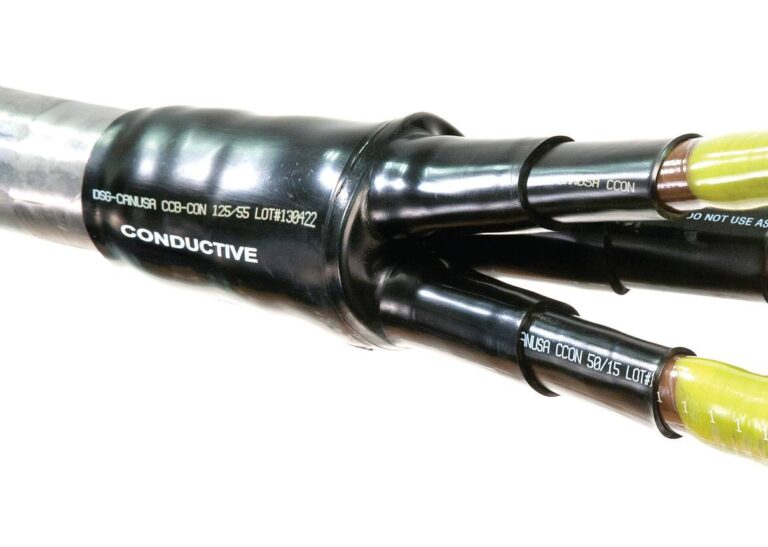

Conductive cable breakout boots
CCB-CON, conductive breakout boots, seal and protect multi-conductor cable and conduit breakouts.
Features and Benefits
- Boots for 3 way cable breakouts
- Strain relief and mechanical protection
- Resistant to common fluids and solvents
- Thermoplastic adhesive liner provides complete environmental protection and insulation
- Shrink ratio: >2:1
- Continuous operating temperature: -40°C to 100°C
- Shrink temperature: 125°C min.
Standards
- IEC 62677
- ESI 09-13
Typical Applications
Strain relief for multi-core cables, moisture sealing and environmental protection
Markets:
- Civil Construction Projects
- Industrial
- Power Distribution
- Utility
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Printing: Printed or unprinted
- Please specify the product name, order number and options you require
- Example: CCB-CON 60/24, black, unprinted, 2.000 pcs
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.

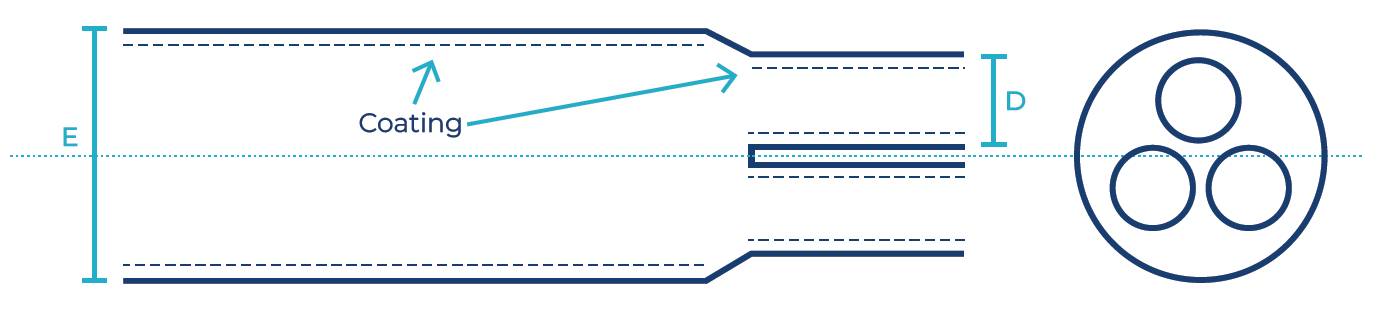

| Order Number | Expanded | Recovered | Delivery Units | ||||
| Breakout Main Diameter (Min) | Finger Diameter (Min) (D) | Breakout Main Diameter (Max) | Finger Diameter (Max) | Full Length +- 10% | Finger Length +- 10% | Pieces | |
| (mm (in)) | (mm (in)) | (mm (in)) | (mm (in)) | (mm (in)) | (mm (in)) | ||
| CCB-CON 60/24 | 60.0 (2.36) | 24.0 (0.95) | 22.0 (0.87) | 8.0 (0.31) | 185.0 (7.28) | 45.0 (1.77) | 30 |
| CCB-CON 80/36 | 80.0 (3.15) | 36.0 (1.42) | 33.0 (1.30) | 16.0 (0.63) | 210.0 (8.27) | 50.0 (1.97) | 20 |
| CCB-CON 110/48 | 110.0 (4.33) | 48.0 (1.89) | 47.0 (1.85) | 20.0 (0.79) | 260.0 (10.24) | 75.0 (2.95) | 20 |
| CCB-CON 125/55 | 125.0 (4.92) | 55.0 (2.17) | 47.0 (1.85) | 20.0 (0.79) | 260.0 (10.24) | 75.0 (2.95) | 10 |
