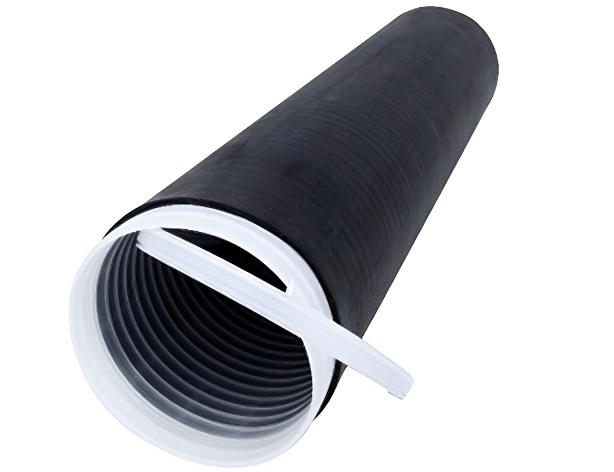

CSCOM
High shrink ratio silicone cold shrink
CSCOM cold-shrink is made using specially formulated silicone rubber and engineered to offer high shrink ratio and excellent UV and weather resistivity to protect assets in indoor or outdoor locations in the Telecommunication market.
Features and Benefits
- Quick and easy installation
- Accommodates a wide range of application sizes
- UV and weather resistant
- Shrink ratio: 3.5:1
- Continuous operating temperature: -50°C to 100°C
- No special tools or training required for installation
Typical Applications
- Telecom connectors and cables
- Remote radio unit connections
- Suitable for indoor or outdoor locations
- Inline connector covers
Markets
- Telecommunications
- Industrial
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted, the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK)
- Please specify the product name, order number, and options you require.
- Order example: CSCOM-40/10-150
Please contact your Customer Service Representative for information on custom colors, sizes, lengths, and material data sheet.
| Order Number | Expanded | Recovered | Expanded Tube Length | |||
| Internal Diameter (min) D | Internal Diameter (max) d | Length | ||||
| mm | in | mm | in | mm | in | |
| CSCOM-40/10-150 | 40 | 1.57 | 12 | 0.47 | 150 | 5.90 |
| CSCOM-40/10-225 | 40 | 1.57 | 12 | 0.47 | 225 | 8.85 |
| CSCOM-48/12-150 | 48 | 1.89 | 14.4 | 0.57 | 150 | 5.90 |
| CSCOM-48/12-225 | 48 | 1.89 | 14.4 | 0.57 | 225 | 8.85 |
| CSCOM-80/20-150 | 80 | 3.15 | 24.84 | 0.98 | 150 | 5.90 |
| CSCOM-80/20-225 | 80 | 3.15 | 24.84 | 0.98 | 225 | 8.85 |
