CPX 201
Thin wall crosslinked polyolefin for circuit ground applications

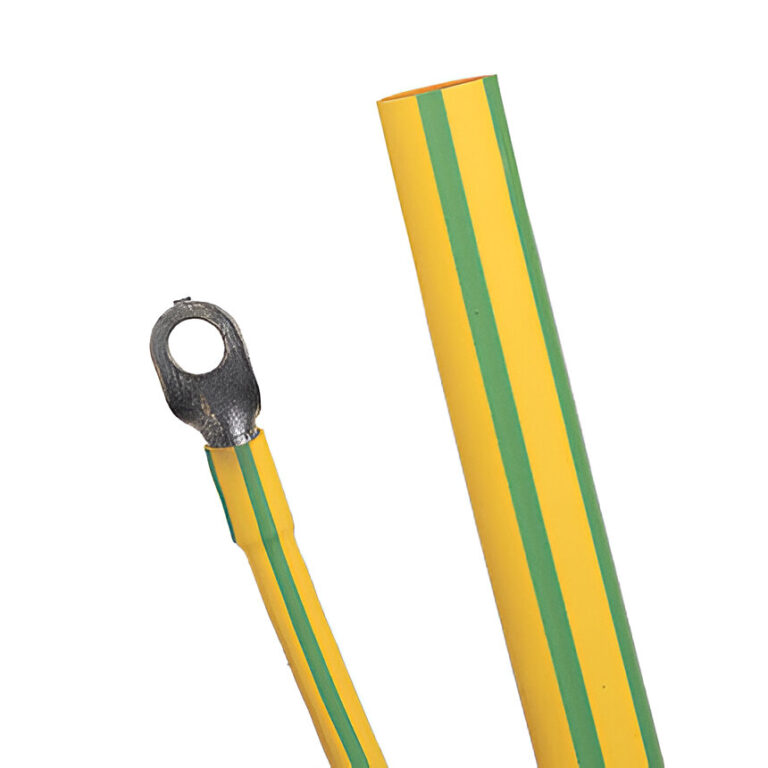

Yellow and green striped heat shrink tubing that is flexible and flame retardant
Features and Benefits
- High shrink ratio: 3:1
- Striped color combination designates international electrical grounding
- Flame retardant
- Resistant to common fluids and solvents
- Flexible
- Rated for 1 kV, 90°C continuous use
- Continuous operating temperature: -55°C to 135°C
- Shrink temperature: 90°C
Standards
- UL 224, 125°C – UL file # E107857
- CSA C22.2 No. 198.1, 125°C – CSA file #065789_0_000
Typical Applications
Identify ground wire and terminals, electrical insulation of in-line connections
Market/Applications
- Industrial
Ordering
- Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Yellow/green stripes
- Printing: Printed or Unprinted
- Length: Continuous reels
- Please specify the product name, order number and options you require
- Order Example: CPX 201, 0250, yellow/green stripes, unprinted, 500 ft lengths
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Lengths | |||||
| Internal Diameter (Min) D | Internal Diameter (Max) d | Wall Thickness (Nom) W | ||||||
| mm | in | mm | in | mm | in | m | ft | |
| 0125 | 3.2 | 1/8 | 1.0 | 0.039 | 0.55 | 0.022 | 150 | 500 |
| 0187 | 4.8 | 3/16 | 1.5 | 0.059 | 0.60 | 0.024 | 61 | 200 |
| 0250 | 6.4 | 1/4 | 2.0 | 0.079 | 0.65 | 0.026 | 150 | 500 |
| 0375 | 9.5 | 3/8 | 3.0 | 0.118 | 0.75 | 0.030 | 61 | 200 |
| 0500 | 12.7 | 1/2 | 4.0 | 0.157 | 0.75 | 0.030 | 61 | 200 |
| 0750 | 19.0 | 3/4 | 6.0 | 0.236 | 0.85 | 0.033 | 61 | 200 |
| 1000 | 25.4 | 1 | 8.0 | 0.315 | 1.00 | 0.039 | 50 | 164 |
| 1535 | 39.0 | 1.50 | 13.0 | 0.512 | 1.15 | 0.045 | 30 | 98 |
