DERAY®-ITW
Thin wall crosslinked polyolefin
Ultra thin wall, very flexible heat shrink tubing designed for applications requiring extreme flexibility, quick shrink times and a thinner profile in space limited applications.
Features and Benefits
- Flame retardant
- Very flexible
- Ultra thin wall
- Ideal for space limited applications
- Thin wall provides shrinkage and allows tubing to confirm better to the substrate
- Shrink ratio: 2:1
- Continuous operating temperature: -55°C to 135°C
- Shrink temperature: 90°C
Standards
- ASTM D2671
Typical Applications

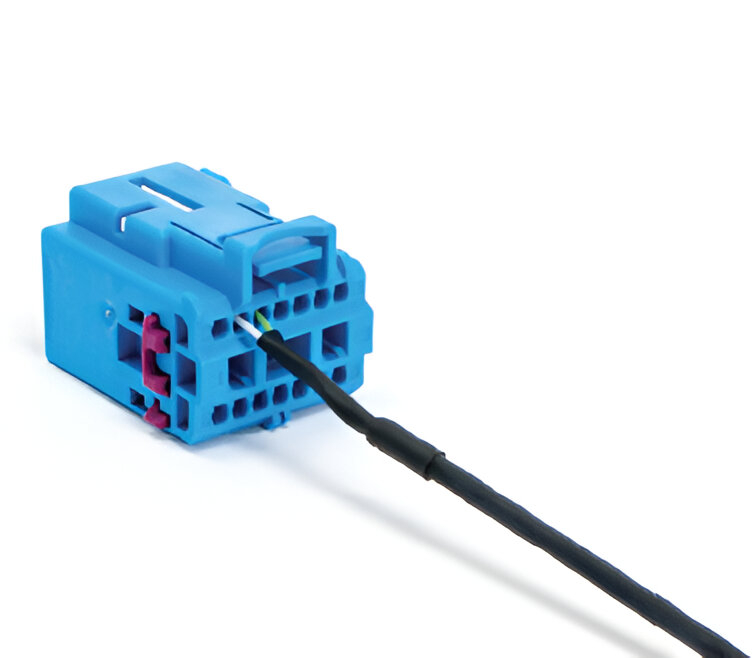

Insulates and protects electronic components, strain relief on connectors, high volume production lines
Market/Applications
- Industrial
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK), Red (RD), White (WT), Clear (CL), Blue (BL), Yellow (YL), Green (GR), Brown (BN), Grey (GY)
- Please specify the product name, order number and options you require
- Order example: DERAY®-ITW, 0220 or 5.6/2.4mm, clear
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |||||
| Internal Diameter (Min) D |
Internal Diameter (Max) D |
Wall Thickness (Nom) W |
Spool Lengths | |||||
| mm | in | mm | in | mm | in | m | ft | |
| 0157 | 4.0 | 0.157 | 1.6 | 0.063 | 0.30 | 0.012 | 300 | 984 |
| 0220 | 5.6 | 0.220 | 2.4 | 0.094 | 0.30 | 0.012 | 300 | 984 |
| 0319 | 8.1 | 0.319 | 3.2 | 0.126 | 0.35 | 0.014 | 150 | 492 |
| 0433 | 11.0 | 0.433 | 4.8 | 0.189 | 0.35 | 0.014 | 150 | 492 |
| 0591 | 15.0 | 0.591 | 6.4 | 0.252 | 0.35 | 0.014 | 100 | 328 |
| 0787 | 20.0 | 0.787 | 9.5 | 0.374 | 0.45 | 0.018 | 50 | 164 |
| 1024 | 26.0 | 1.024 | 12.7 | 0.500 | 0.50 | 0.020 | 50 | 164 |
