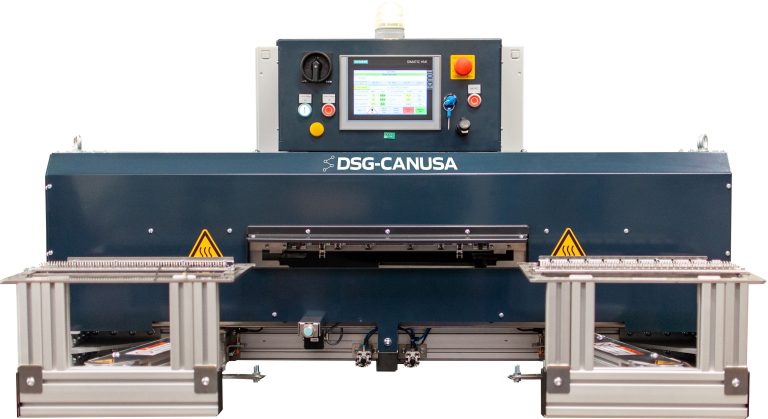

DERAY®-Shuttle 2.0
Heat shrink system for ring terminals, tubular cable lugs, end splices and battery terminals
The DERAY®-Shuttle 2.0 is a heat shrink system with infrared heating elements to process heat shrink tubes onto terminals and end splices. The shrink device has two independent working stations, equipped with customized frames to shrink up to 20 applications per cycle. As an option, the shrinking machine has a RFID identification system for the reliable detection of the processing parameters.
Features and Benefits
- Machine is designed for Integrated Systems applications (network connections)
- Robust and durable IR ceramic heating elements
- Two customized frames for a faster and optimized working process
- Processable cable cross section of up to 85 mm2
- Processing sleeves with up to 90 mm length
- Monitored height adjustment of upper heating element ensures a safe processing of terminals with different geometries
- Communication systems: RS232, TCP/IP and OPC UA
- Automatic selection of process parameters via USB scanner or manually via touch panel
- Machine hours and cycle counter
- Temperature- and speed-monitoring
- Application specific requirement setting via touch panel
- Customized frames equipped with RFID
- CE and RoHs conformity
- Selection of system language: German, English, French, Czech, Polish, Portuguese, Romanian, Ukrainian
Applications
Ring terminals, tubular cable lugs, end splices, battery terminals
Operation
The shrink device DERAY®-Shuttle 2.0 has two frames for manual insertion of cables previously fitted with heat shrink tubing. After one frame has been swung into the heating zone of DERAY®-Shuttle 2.0 an automatic shrinking process begins (manual mode, RFID mode, scanner mode, integrated system mode). Two infrared ceramic elements heat the shrink tube. During the shrinking process the
operator continues to load/unload the second frame. Following the shrinking process, a cooling cycle is activated and the applications are cooled by fans.
Order Information
DERAY®-Shuttle 2.0
Heat Shrink Products & Sizes
- DERAY®-SpliceMelt / DERAY®-SpliceMelt Cap: Sizes 1 to 4
- DERAY®-RKS: Sizes 1 to 3
- DERAY®-ACT: Sizes 1 to 3
For other products and sizes contact DSG-Canusa Application Engineering
Scope of Delivery
- Shrink Equipment
- Operating manual: German, English, French, Czech, Polish, Portuguese, Romanian, Ukrainian
Accessories
- Calibration sensor
- USB scanner
- Additional frames
Market/Applications
- Dual Wall
- OEM
- Splice Sealing Solutions
- Transit
- Automotive
- Marine
- Aerospace Defense
- Application Equipment
- Waterblocking
| Properties | |
| Electrical connection | 1/N/PE AC 230 V 50-60 Hz |
| Electrical power consumption | approx. 1.8 kW/h at 600°C shrink temperature |
| Rated current | 7.8 A |
| Electrical fuse protection at the owner | 16 A |
| Degree of protection | IP 20 |
| Pneumatic connection | 4.5 – 10 bar (65.3 – 145 psi) |
| Shrink temperature at the IR heater | 600°C (1112°F) |
| Ambient temperature | 10 °C – 45 °C (50°F – 113°F) |
| Sound pressure level | approx. 60 dB(A) |
| Dimensions and weight | |
| Shrink equipment | w 1400 x h 850 x d 1100 mm (w 55.12 x h 33.46 x d 44.31 in) 162 kg (357 lbs) |
