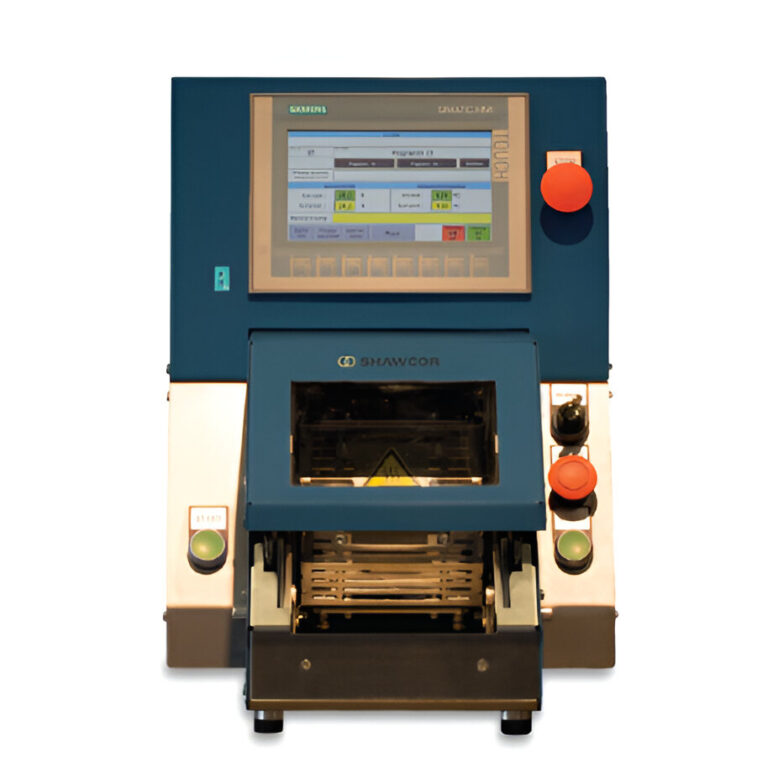

DERAY®-SpliceMan IR
Heat shrink system
DERAY®-SpliceMan IR is a heat shrink system with infrared heating elements designed to process adhesive lined heat shrink tubes onto ultrasonically welded- and crimped splice joints.
Features and Benefits
- Robust and durable IR Quartz emitters
- Safe and easy use via Siemens Touch Panel
- Ideal heat distribution through special shrink chamber
- Communication with upstream ultrasonic welder allows time, temperature and tubing size to be automatically set without operator intervention
- Up to 125 data sets storable
- Cost efficient process because of fast shrinking
- Communication systems: RS232, TCP/IP and OPC UA
- Automatic selection of process parameters via USB scanner or manually via touch panel
- Compressed air not required
- Adjustable parameters: Shrink time, temperature control through Siemens CPU
- Password protected programming mode
- Automatic or manual calibration
- Selection of system language: English, German, Mandarin (others on demand)
- CE and RoHs conformity
Applications
Parallel splices
Operation
The shrinking device DERAY®-SpliceMan IR is equipped with two quartz radiating lamps. The shrink device has an object receptacle for the manual insertion of a parallel splice. After locating the splice sealing product over the splice, the automatic shrinking process is started by pushing the two start buttons. The heating chamber closes around the splice joints. At the end of the shrinking process, the heating chamber returns to the home position and the finished splice is ejected forward.
Order Information
DERAY®-SpliceMan IR
Heat Shrink Products & Sizes
- DERAY®-SpliceMelt Sizes 1 to 3, length max. 65 mm
- HFTX Sizes 1 to 3, length max. 65 mm
- CHPA Sizes 1 to 3, length max. 65 mm
For other products and sizes contact DSG-Canusa Application Engineering
Scope of Delivery
- Shrink equipment
- Operating manual: English, German (others on demand)
Accessories
- Calibration sensor
- USB scanner
Market/Applications
- Dual Wall
- Single Wall
- OEM
- Splice Sealing Solutions
- Transit
- Automotive
- Marine
- Aerospace Defense
- Application Equipment
- Waterblocking
| Properties | |
| Electrical connection | 1/N/PE AC 230 V 50-60 Hz |
| Electrical power consumption | 0.5 kW |
| Rated current | 2 A |
| Electrical fuse protection at the owner | 16 A |
| Degree of protection | IP 20 |
| Shrink temperature at the IR heater | 530°C (986°F) |
| Shrink time | 6 – 99 sec. depending on wire cross section and number of wires |
| Ambient temperature | 10°C – 45°C (50°F – 113°F) |
| Sound pressure level | approx. 50 dB(A) |
| Dimensions and weight | |
| Shrink equipment | w 330 x h 475 x d 550 mm (w 13 x h 18.7 x d 21.7 in) 22 kg (48.5 lbs) |
