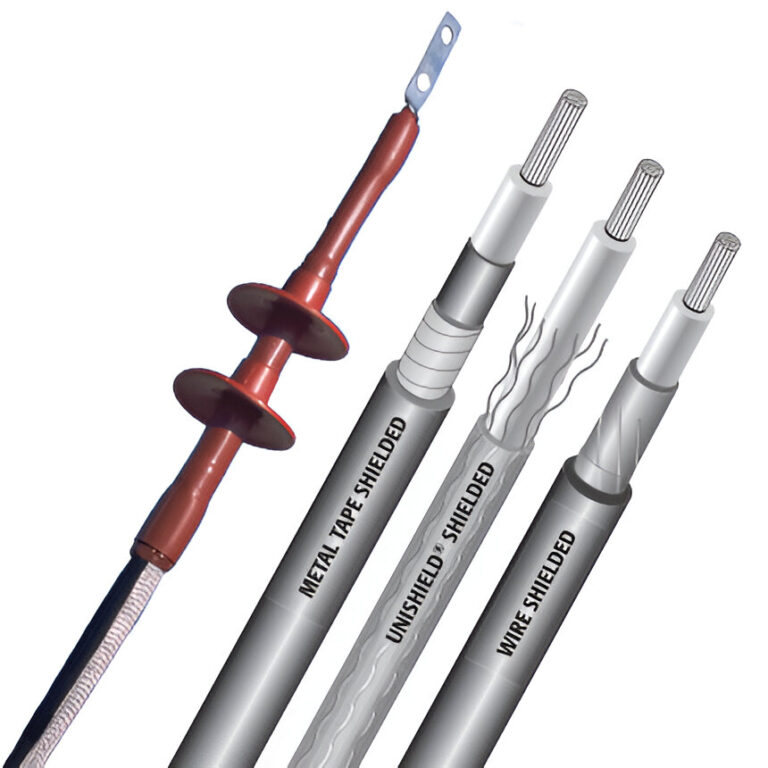

CT G Series
Heat shrink medium voltage cable terminations
Heat shrink cable terminations for single core, 5 kV to 35 kV, copper tape, drain wire, UniShield or lead sheathed XLPE and EPR power cables for the electrical construction market.
Features and Benefits
- Fast, consistent installation means lower installed costs
- Heat activated seals ensure maximum protection against moisture ingress
- Installation environment: use of torch adds flexibility to cable preparation in any climate
- Light weight construction requires no additional support
- UV resistant, non-tracking outer tube for long life, even under adverse conditions
- Slim profile allows installation in confined switch gear cubicles
Standards
- Rated to IEEE 48-1996, Class 1
Test Reports
The CT 080 series through CT 350 series terminations were tested to the requirements of IEEE 48-1996 Class 1 at an independent laboratory.
Test reports are available as follows:
- CT 080 series: HVS020075
- CT 150 series: HVS 020076
- CT 250 series: HVS020077 and HVS020083
- CT 350 series: HVS020078
Market/Applications
- Transit
- Water/Waste Water Treatment
- Shipboard
- OEM
- Communication Power & Control
- Power Distribution
- Civil Construction Projects
- Industrial
- Petrochem/Pulp & Paper
- Power Distribution – MV
- Utility
- Commercial Construction Projects
- Mining
Note: Termination Tests to IEEE 48-1996 Standard Test Procedures and Requirements for Alternating Current Cable Terminations 2.5 kV through 765 kV
Ordering
- Select the termination kit size for the copper tape, drain wire, lead sheathed or UniShield shielded power cable to be terminated.
- Confirm the cable dimensions. At the high end of the conductor range it may be necessary to select the next larger size kit. Dimensions are based on cable information from AEIC CS5 and CS6 cable standards.
- For terminations that will be exposed to direct precipitation select the outdoor termination by adding the suffix to the order number. To add an external grounding kit for tape shielded cables add to the order number. To include a cable preparation kit add the suffix to the end of the order number.
FOR EXAMPLE: a 15 kV outdoor termination for 2/0 cable with an external ground kit and cable preparation kit would be CT 151EGP.
| Indoor Kit Order Number |
Outdoor Kit Order Number |
Conductor Size Range | Insulation Diameter Min – Max |
Jacket Diameter Max |
||
| in | mm | in | mm | |||
| 5 kV | ||||||
| CT 081(G) | CT 081E(G) | #4 – #1 AWG | 0.40 – 0.60 | 11 – 16 | 0.95 | 24 |
| CT 082(G) | CT 082E(G) | 1/0 – 250 kcmil | 0.60 – 0.95 | 16 – 24 | 1.20 | 30 |
| CT 083(G) | CT 083E(G) | 300 – 500 kcmil | 0.80 – 1.25 | 21 – 35 | 1.50 | 38 |
| CT 084(G) | CT 084E(G) | 600 – 1750 kcmil | 1.10 – 1.75 | 28 – 45 | 2.10 | 55 |
| CT 085(G) | CT 085E(G) | 1500 – 2500 kcmil | 1.60 – 2.45 | 41 – 62 | 2.75 | 70 |
| 8 kV | ||||||
| CT 081(G) | CT 081E(G) | #6 – #2 AWG | 0.40 – 0.60 | 11 – 16 | 0.95 | 24 |
| CT 082(G) | CT 082E(G) | #1 – 4/0 AWG | 0.60 – 0.95 | 16 – 24 | 1.20 | 30 |
| CT 083(G) | CT 083E(G) | 250 – 500 kcmil | 0.80 – 1.25 | 21 – 35 | 1.50 | 38 |
| CT 084(G) | CT 084E(G) | 600 – 1750 kcmil | 1.10 – 1.75 | 28 – 45 | 2.10 | 55 |
| CT 085(G) | CT 085E(G) | 1500 – 2500 kcmil | 1.60 – 2.45 | 41 – 62 | 2.75 | 70 |
| 15 kV | ||||||
| CT 151(G) | CT 151E(G) | #4 – 4/0 AWG | 0.60 – 1.05 | 16 – 27 | 1.45 | 37 |
| CT 152(G) | CT 152E(G) | 3/0 – 350 kcmil | 0.80 – 1.25 | 21 – 35 | 1.75 | 45 |
| CT 153(G) | CT 153E(G) | 400 – 1000 kcmil | 1.10 – 1.65 | 28 – 42 | 2.10 | 55 |
| CT 154(G) | CT 154E(G) | 1250 – 2500 kcmil | 1.60 – 2.45 | 41 – 63 | 2.75 | 70 |
| 25 – 28 kV | ||||||
| CT 251(G) | CT 251E(G) | #2 – 350 kcmil | 0.80 – 1.40 | 21 – 35 | 1.80 | 46 |
| CT 252(G) | CT 252E(G) | 350 – 1000 kcmil | 1.10 – 1.80 | 28 – 46 | 2.50 | 64 |
| CT 253(G) | CT 253E(G) | 1000 – 1750 kcmil | 1.60 – 2.45 | 41 – 63 | 2.75 | 70 |
| 35 kV | ||||||
| CT 351(G) | CT 351E(G) | #1 – 250 kcmil | 0.95 – 1.40 | 24 – 35 | 1.90 | 48 |
| CT 352(G) | CT 352E(G) | 250 – 1000 kcmil | 1.25 – 2.10 | 32 – 53 | 2.60 | 66 |
