DERAY®-WorkMan TP 2.0

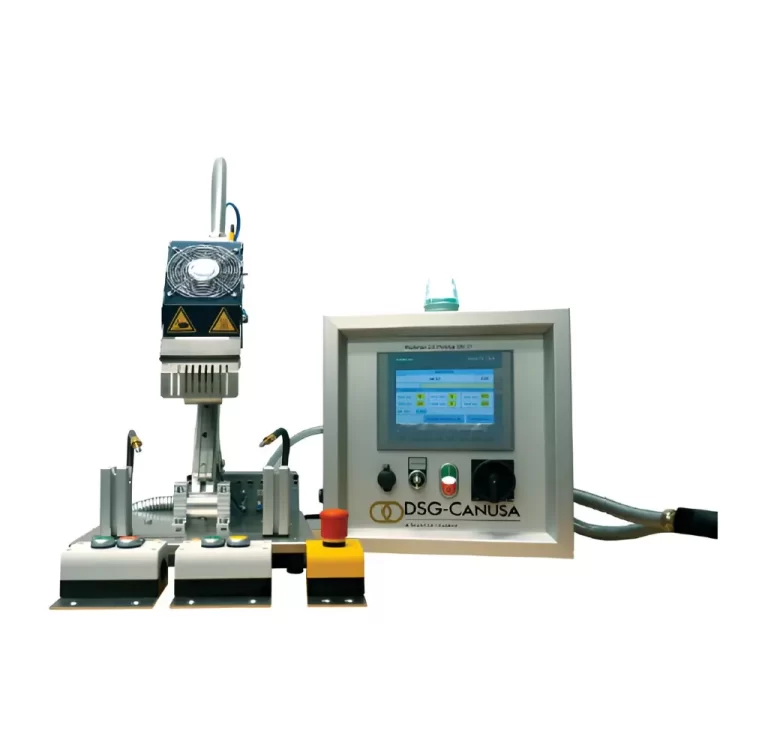

The DERAY®-WorkMan TP 2.0 is a hot air shrink equipment designed to process heat shrink tubes onto a wide variety of applications. The universal machine can be used assembly and wire harness series production purposes.
Features and Benefits
- Fully automatic calibration
- Network connection allows data exchange between shrink machine and customer network
- Continuous monitoring of heating elements condition for preventive maintenance
- Customization of fixtures for optimal process results
- Auto-Off & Standby feature can be set individually for energy saving purposes
- Lean connector system between shrink unit and control cabinet
- Control box grants access to several feature extensions
- Automatic Calibration including monitoring & alert of expiration of calibration
- High application variety through various shrink chamber sizes
- Automatic selection of process parameters via USB scanner or manually via touch panel
- Air pressure adjustment by scan or via display
- Communication systems: RS232, TCP/IP, and OPC UA
- Day, process and working hours
- Selection of system language: English, German, Spanish, French, (others on demand)
- CE and RoHs conformance
Up to 125 data sets storable
Ø 30–80 mm shrink chambers available
High application variety, high level network integration, and possible add-on extension
Applications
Air conditioning pipes, brake pipes, cable bundle sealing, seatbelt buckles, connectors, battery cables, end splices, y-splices for HV
Operation
The heat shrink covered object must be fixed in the holding device. The shrink parameters can be selected either manually or by means of a scanner. Then the shrink process is started by using both hands for safety reasons. The mobile shrink unit automatically moves to the operating position and the shrink process begins. Opening and closing of the shrink chamber takes place pneumatically. In addition, an after-cooling time or a continuous cool time can be selected. Once shrinking is complete, the mobile shrink unit returns to its ready position.
Order Information
DERAY®-WorkMan TP 2.0
Heat-shrink products & sizes:
DSG-Canusa heat shrink products:
- Maximum tubing diameter up to 70 mm
- Maximum tubing length up to 210 mm
For other products and sizes contact DSG-Canusa Application Engineering.
Scope of delivery:
- Shrink equipment
- Control unit
- One shrink chamber
- 2-hand safety start button
- Operating manual: English, German, Spanish, French, (others on demand)
Accessories:
- USB scanner
- Shrink chambers: Width up to 210 mm; internal diameter up to 80 mm
- Calibration sensor
- NEW: Vision system
Technical Data
| Property | |
| Electrical connection | 1/N/PE AC 230 V 50-60 Hz |
| Electrical current consumption | approx. 1.1 kW/h at 275 °C shrink temperature |
| Electrical power consumption | max. 3.6 kW |
| Rated current | 16 A |
| Elec. fuse protection at the owner | 16 A |
| Degree of protection | Control unit: IP 54; shrink head: IP 20 |
| Shrink temperature | 150 °C – 275 °C (302 °F – 527 °F) |
| Pneumatic connection | 6 – 8 bar (90 – 115 psi) |
| Pneumatic work pressure | 5 bar (72 psi) |
| Compressed air consumption | 100 – 300 ltr/min (3.5 – 10.6 cfm) |
| Heating air shrink chamber adjustable | 0.5 – 1.0 bar (7.3 – 14.5 psi) |
| Ambient temperature | 10 °C – 45 °C (50 °F – 113 °F) |
| Sound pressure level | approx. 67 dB(A) |
| Dimensions and weight | |
| (Shrink equipment) | w 400 x h 770 x d 570 mm (w 15.7 x h 30.3 x d 22.4 in), 18 kg (39.7 lbs) |
| (Control unit) | w 400 x h 480 x d 340 mm (w 15.7 x h 22.8 x d 13.4 in), 19 kg (41.9 lbs) |
