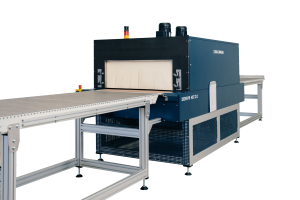

DERAY®-HST 2.0 XL
The DERAY®-HST 2.0 XL is a shrink tunnel designed to process heat shrink tubes onto long or angular objects like cooling water hoses, air-conditioning pipes, brake pipes, bus bars, hood supports, cables and other applications. Because of 2 separate shrink chambers large objects in need of a lot of heating can be processed. The large heating chamber allows a wide variety of application geometries to
be processed.
The HST 2.0 XL can be equipped with an inlet and outlet conveyor belt so that object recordings can also pass through on which a variety of applications are fixed and shrink-wrapped.
Features and Benefits
- Wide shrink chamber (850mm) to process large, long and / or angular objects can be processed
- High number of homogenous applications processable due to customized assembly frames

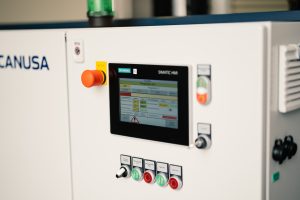

- Steplessly and per PLC adjustable belt drive and fan speed
- 2 independently adjustable heating zones with integrated controlers
- Reverse belt drive for space saving working setup
- Heating level monitoring by current, offset and calibration validity monitoring
- Interconnected operation with sub-systems via Profinet / Profibus
- Optional systems:
– External cooling
– driven conveyor system with inlet & outlet stop
– camera inspection
– QR code reader of shrunken applications - OPC-UA ready
Broad application processing with custom frames

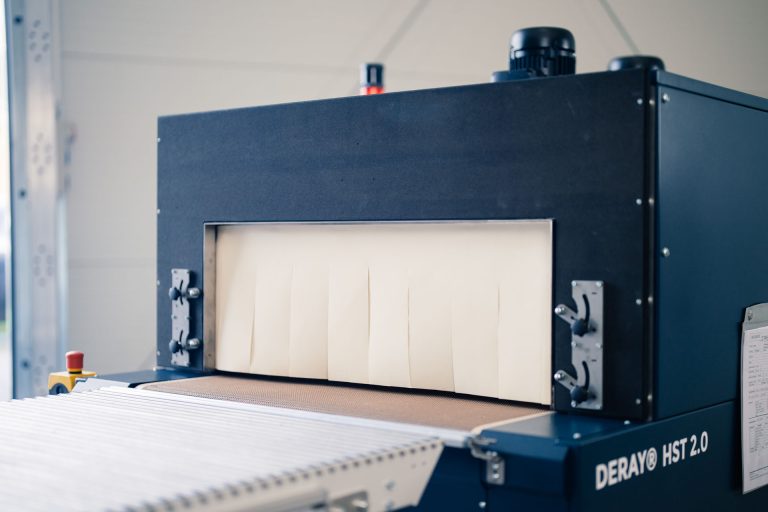

8 Lids for adjustable air distribution
Applications
Reverse belt drive for space saving working setup
Operation
The DERAY®-HST 2.0 XL is to be adjusted according to the needed shrink temperature, process speed and air distribution. The application is positioned on the conveyor belt after being prepared with the heat shrink tube. The applications are processed in two shrink chambers. The temperature can be set individually for each chamber. If added, the application is transported into and out of the shrink tunnel by a conveyor belt. After the shrink process, the application is cooling down while being transported on the added conveyor belt or is being removed for cooling by hand.
Order Information
DERAY®-HST 2.0 XL
Heat-shrink products & sizes:
DSG-Canusa heat-shrink products:
- Maximum tubing diameter up to 1200 mm
- Maximum tubing length up to 2000 mm
For other products and sizes contact DSG-Canusa Application Engineering.
Scope of delivery:
- Shrinking machine
- Operating manual: English, German (others on demand)
Accessories:
- Object frames
- Infeed and / or outfeed conveyor belt with / without drive from 1000mm length
- Cooling section on outfeed conveyor belt
- Camera Inspection system
- Bar code reader for program scan and / or for finished application scan
| Property | |
| Electrical connection | 3N 400 V 50 Hz |
| Electrical power consumption | 36 kW |
| Power of heating unit | 33.6 KVA |
| Shrinking zone | w 850 x h 300 x d 1800 mm (w 33.46 x h 11.8 x d 70.9 in) |
| Shrink temperature at the heater | 70°C – 240°C (158°F – 464°F) |
| Ambient temperature | 5°C – 40°C (41°F – 104°F) |
| Dimensions and weight | |
| Shrink equipment | w 1200 / h 1652 / d 2300mm (w 47.24 x h 65.03 x d 90.55 in) approx. 701.36 kg (approx. 1546.23 lbs) |
