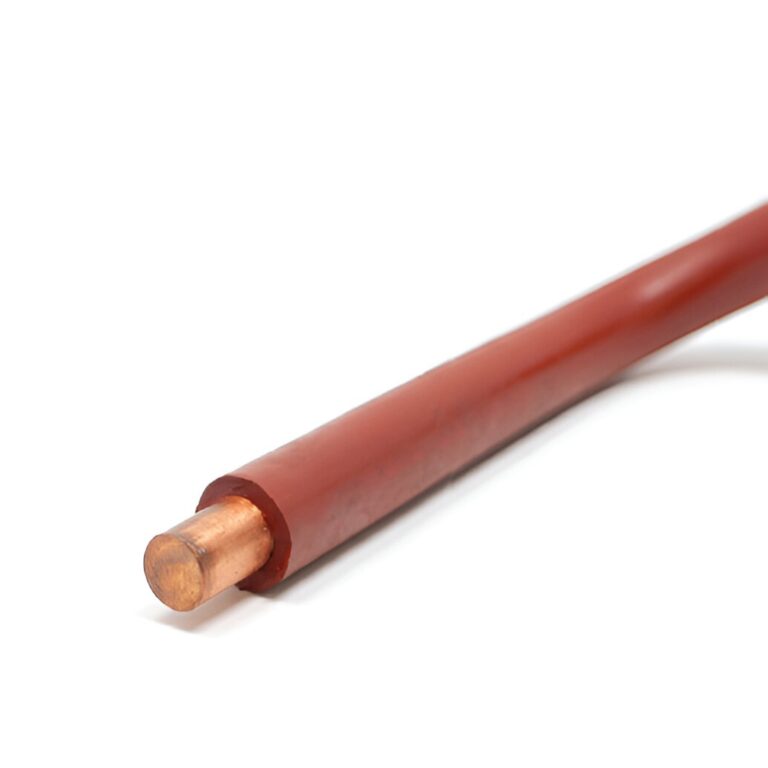

DERAY®-KSF
Medium and heavy wall crosslinked polyolefin
Medium and heavy wall anti-track heat shrinkable tubing specifically designed for insulating medium voltage bus bars in switchgear equipment rated to 36kV.
Features and Benefits
- Halogen free
- Reduces bus bar clearance requirements
- Protects against accidental flash-over
- Anti-track
- Shrink ratio: 3:1
- Continuous operating temperature: -40°C to 135°C
- Shrink temperature: 125°C
Standard
- IEC 60684
Typical Applications
Insulation of medium voltage bus bars in switchgear equipment, transformers and generators
Market/Applications
- OEM
- Industrial
- Power Distribution – MV
- Utility
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Red (RD)
- Please specify the product name, order number and options you require.
- Order example: DERAY®-KSF, 19/6, red
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Wall Thickness (Nom) W |
Spool Lengths | |||||
| mm | in | mm | in | mm | in | m | ft | |
| 19/6 | 19.0 | 0.748 | 6.0 | 0.236 | 2.00 | 0.079 | 50 | 164 |
| 25/10 | 25.0 | 0.984 | 10.0 | 0.394 | 4.10 | 0.161 | 50 | 164 |
| 32/12 | 32.0 | 1.260 | 12.0 | 0.472 | 2.80 | 0.110 | 50 | 164 |
| 38/12 | 38.0 | 1.496 | 12.0 | 0.472 | 2.80 | 0.110 | 50 | 164 |
| 43/19 | 43.0 | 1.693 | 19.0 | 0.748 | 3.50 | 0.138 | 25 | 82 |
| 45/16 | 45.0 | 1.772 | 16.0 | 0.630 | 4.10 | 0.161 | 25 | 82 |
| 52/19 | 52.0 | 2.047 | 19.0 | 0.748 | 3.50 | 0.138 | 25 | 82 |
| 58/19 | 58.0 | 2.283 | 19.0 | 0.748 | 3.50 | 0.138 | 25 | 82 |
| 68/25 | 68.0 | 2.677 | 25.0 | 0.984 | 3.50 | 0.138 | 25 | 82 |
| 76/32 | 76.0 | 2.992 | 32.0 | 1.260 | 3.50 | 0.138 | 25 | 82 |
| 100/40 | 100.0 | 3.937 | 40.0 | 1.575 | 4.10 | 0.161 | 10 | 33 |
