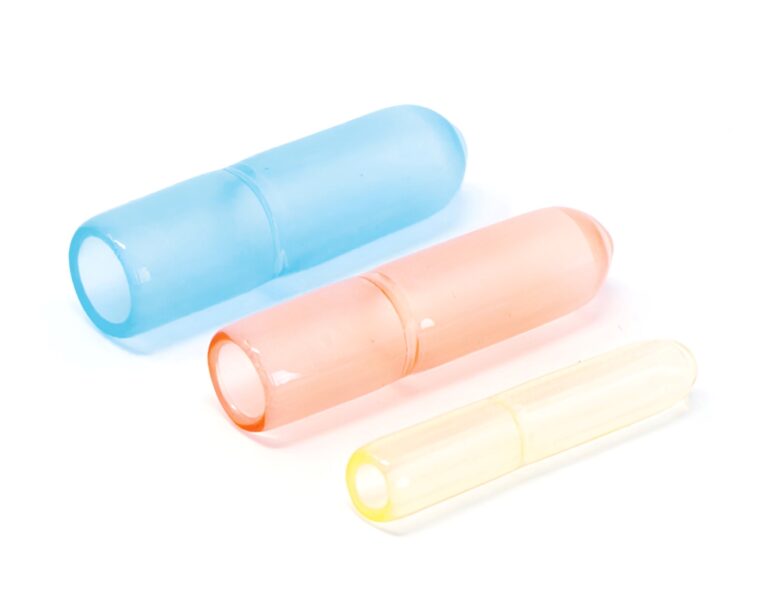

DERAY®-HIOK
Soft PVC insulation cap
Non-shrinkable insulation cap made of soft PVC with indentation cut for electrical insulation.
Features and Benefits
- Good resistance to aggressive media and fuel
- Good adhesion to various types of splices thanks to the specifically designed indentation cut
- No detachment under operating temperatures
- Translucent material allows optimum positioning
- Continuous operating temperature: -35°C to 85°C
Standards
- Approved to all major automotive OEM specification
Typical Applications
Insulation of end crimped splices in wire harnesses, mechanical protection of end splices
Market/Applications
- Automotive
Ordering
- Select options:
- Color: Black-Clear (BK), Grey-Clear (GY), Yellow-Clear (YL), Green-Clear (GR), Blue-Clear (BL), White-Clear (WT), Clear (CL)
- Please specify the product name, order number and options you require
- Order example: DERAY®-HIOK, 9974535620 or 4.5x35mm, grey-clear
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.

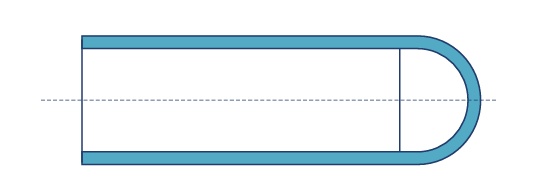

| Order Number | Dimension | Delivery Units | ||||||
| Internal Diameter (Min) D |
Total Wall Thickness (Nom) W |
Cut Lengths | Color | Pcs / Cardboard (Packed in Bags) |
||||
| mm | in | mm | in | mm | in | |||
| 9973035770 | 3.0 | 0.118 | 1.00 | 0.039 | 35.0 | 1.38 | grey-clear | 18,000 |
| 9973735120 | 3.7 | 0.146 | 1.00 | 0.039 | 35.0 | 1.38 | yellow-clear | 13,500 |
| 9974535620 | 4.5 | 0.177 | 1.00 | 0.039 | 35.0 | 1.38 | green-clear | 11,250 |
| 9975035520 | 5.0 | 0.197 | 1.00 | 0.039 | 35.0 | 1.38 | blue-clear | 9,000 |
| 9976035970 | 6.0 | 0.236 | 1.00 | 0.039 | 35.0 | 1.38 | black-clear | 6,750 |
| 9976535620 | 6.5 | 0.256 | 1.00 | 0.039 | 35.0 | 1.38 | green-clear | 6,750 |
| 9977535120 | 7.5 | 0.295 | 1.25 | 0.049 | 35.0 | 1.38 | yellow-clear | 5,400 |
| 9979535890 | 9.5 | 0.374 | 2.00 | 0.079 | 35.0 | 1.38 | clear | 2,400 |
| 9961135890 | 11.0 | 0.433 | 2.00 | 0.079 | 35.0 | 1.38 | white-clear | 2,000 |
