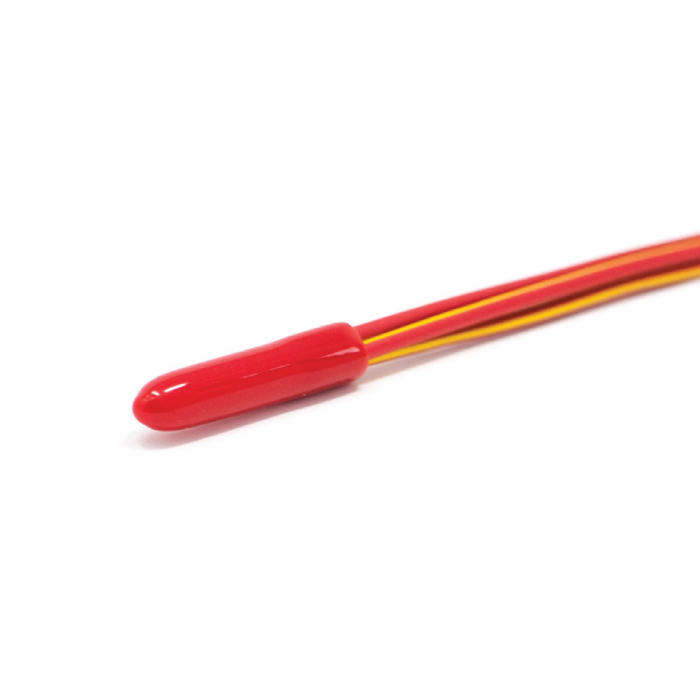

DERAY®-IOK
Soft PVC insulation cap
Non-shrinkable insulation cap made of soft PVC for reliable electrical protection.
Features and Benefits
- Ensures 100 % electrical insulation
- Easy and low-cost installation without processing appliances
- Various colors available on request
- Continuous operating temperature: -35°C to 85°C
Standards
- Approved to German automotive OEM specifications
Typical Applications
Insulation of ultrasonically welded end and crimp splices, mechanical protection
Market/Applications
- Industrial
- Automotive
Ordering
- Select options:
- Color: Black (BK), Red (RD), White (WT), Clear (CL), Blue (BL), Yellow (YL), Green (GR), Grey (GY)
- Please specify the product name, order number and options you require
- Order example: DERAY®-IOK, 9915500500 or 5.0x20mm, blue
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Dimension | Delivery Units | ||||||
| Internal Diameter (Min) D |
Total Wall Thickness (Nom) W |
Cut Lengths | Color | PCS / Cardboard (Packed in Bags) |
||||
| mm | in | mm | in | mm | in | |||
| 9915300700 | 3.0 | 0.118 | 0.75 | 0.030 | 15.0 | 0.59 | grey | 10,000 |
| 9915400100 | 4.0 | 0.157 | 1.00 | 0.039 | 20.0 | 0.79 | yellow | 5,000 |
| 9915500500 | 5.0 | 0.197 | 1.00 | 0.039 | 20.0 | 0.79 | blue | 5,000 |
| 9915600950 | 6.0 | 0.236 | 1.00 | 0.039 | 25.0 | 0.98 | black | 4,000 |
| 9915750100 | 7.5 | 0.295 | 1.25 | 0.049 | 25.0 | 0.98 | yellow | 2,000 |
| 9915950900 | 9.5 | 0.374 | 1.25 | 0.049 | 35.0 | 1.38 | white | 2,000 |
| 9911200300 | 12.0 | 0.472 | 1.25 | 0.049 | 35.0 | 1.38 | red | 2,000 |
| 9911450700 | 14.0 | 0.551 | 2.00 | 0.079 | 50.0 | 1.97 | grey | 1,000 |
| 9911610700 | 16.0 | 0.630 | 1.50 | 0.059 | 50.0 | 1.97 | grey | 500 |
