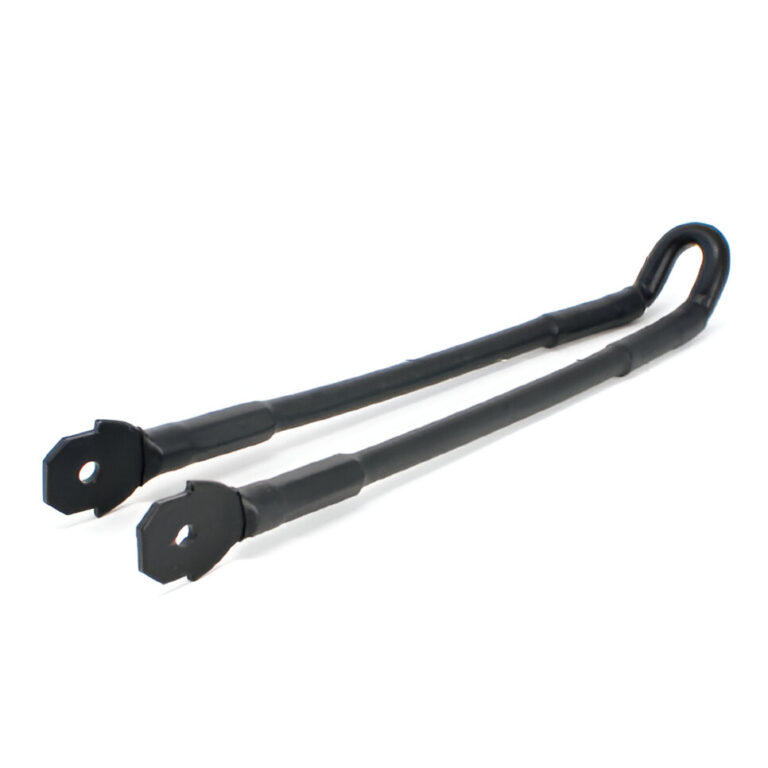

DERAY®-IB NS
Thin wall crosslinked polyolefin
Thin wall crosslinked polyolefin with specially designed dimensions and functions for seatbelt locks and car aerials.
Features and Benefits
- Quick shrinking
- Very flexible
- Halogen free
- Good abrasive resistance
- Can be colour coordinated to match the application’s design
- Shrink ratio: >2:1
- Continuous operating temperature: -55°C to 135°C
- Shrink temperature: 95°C min.
Typical Applications
Seatbelt locks and car aerials
Market/Applications
- Single Wall
- Automotive
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK), other colors on request
- Please specify the product name, order number and options you require
- Order example: DERAY®-IB NS 24-6.8, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | ||||
| Internal Diameter (min) D |
Internal Diameter (max) d |
Wall Thickness (nom) W |
Pieces | ||||
| mm | in | mm | in | mm | in | ||
| IB NS 24 | 24 | 0.945 | 6.8 | 0.268 | 1.2 | 0.047 | on request |
| IB NS 27 | 27 | 1.062 | 9.5 | 0.374 | 0.8 | 0.031 | on request |
| IB NS 30 | 30 | 1.181 | 9.5 | 0.374 | 0.8 | 0.031 | on request |
