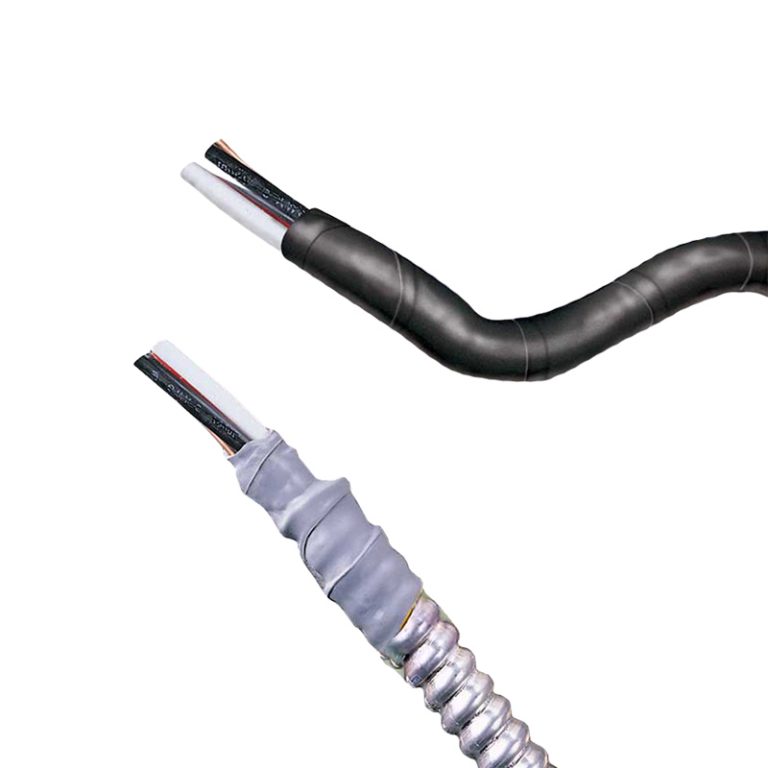

CTSB-2 / CTSG-1
Tape sealant
CTSB-2: Specially designed, rubber based, black sealant tape for use with heat shrink tubing
CTSG-1: Cross-linked, grey butyl tape suitable for continuous high temperature applications
Features and Benefits CTSB-2:
- Excellent adhesion to PVC, PE and steel
- Softens to fill voids
- Remains flexible over time
- Non-conductive
- Superior waterproof seal when used with other DSG-Canusa products
- Continuous operating temperature: -30°C – 85°C
Features and Benefits CTSG-1:
- Protects sharp edges and smooths out transitions
- Environmentally seals areas and tubing
- Non-conductive
- Excellent high temperature performance
- Resistant to common fluids and solvents
- High dielectric strength (310 V/mil)
- Continuous operating temperature: -30°C – 105°C
Typical Applications
Insulating and sealing electrical connections, padding over irregular surfaces
Market/Applications
- OEM
- Power Distribution
- Power Distribution – LV
- Industrial
- Utility
Ordering
- Select the appropriate tape sealant.
- Please specify the product name plus the options you require
- Example: CTSG-1
Please contact your Customer Service Representative for information on tape sealant and material data sheet.
| Order Number | Width | Thickness | Roll Length | |||
| mm | in | mm | in | mm | in | |
| CTSB-2 (Black) | 50.8 | 2.0 | 1.5 | 0.06 | 7620 | 300 |
| CTSG-1 (Grey) | 25.4 | 1.0 | 1.5 | 0.06 | 7620 | 300 |
