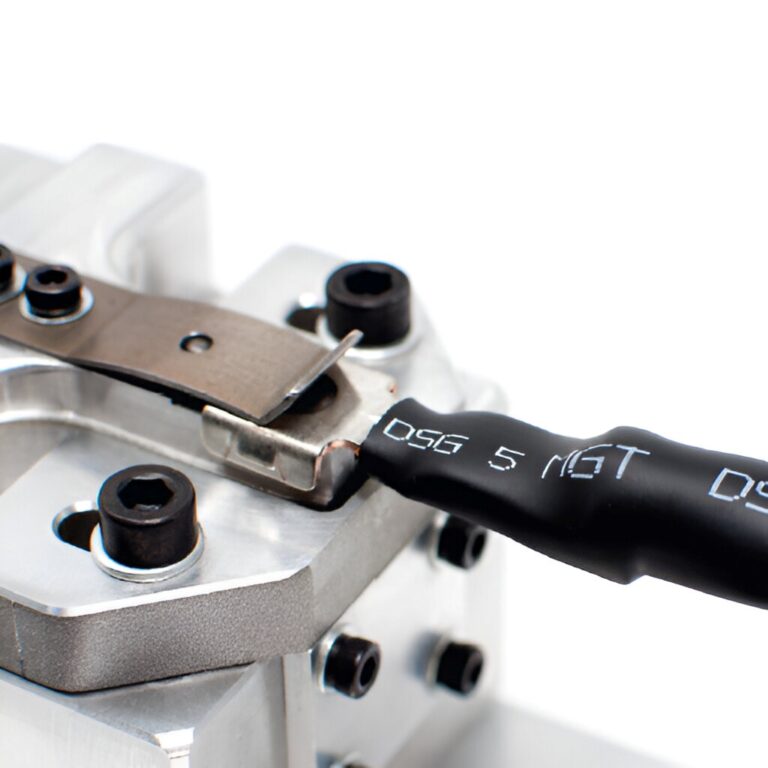

DERAY®-MGT 5
Terminal sealing solution
Adhesive lined heat shrink system specifically designed to insulate, seal and protect terminals in automotive assemblies.
Features and Benefits
- High shrink ratio to fit varying terminal sizes
- Seals and protects against water, moisture and chemicals
- Adhesive bonds readily to PVC, XLPE and PP-EPDM cable jackets
- Shrinks rapidly for quick installation
- Shrink ratio: 6:1
- Continuous operating temperature: -40°C to 125°C
- Shrink temperature: 120°C
- Combination with DERAY®-SpliceMelt if additional adhesive is needed
Standards
- FCA Standard
- Fiat Norm 91309/1
Typical Applications
- Ground terminals
- Eyelet terminals
DERAY®-MGT 5
DERAY®-SpliceMeltband
Market/Applications
- Dual Wall
- Splice Sealing Solutions
- Automotive
- Waterblocking
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Please specify the product name, order number and options you require
- Order example: DERAY®-MGT 5-System, 45mm
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
Installation
DERAY®-WorkMan shrink oven is recommended for repeatable application.
DERAY®-MGT 5
| Order Number | Expanded | Recovered | Delivery Units | |||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Wall Thickness (Nom) W |
||||||
| mm | in | mm | in | mm | in | mm | in | |
| DERAY®-MGT 5 | 16.0 | 0.629 | 2.5 | 0.098 | 2.35 | 0.093 | 45.0 | 1.77 |
| DERAY®-MGT 5 | 16.0 | 0.629 | 2.5 | 0.098 | 2.35 | 0.093 | 55.0 | 2.17 |
DERAY®-SpliceMeltband
| Order Number | Width | Thickness | Delivery Units | |||
| mm | in | mm | in | mm | in | |
| DERAY®-SpliceMeltband | 10.0 | 0.394 | 1.5 | 0.059 | 30.0 | 1.181 |
