DERAY®-HB NS K48
Thin wall crosslinked polyolefin

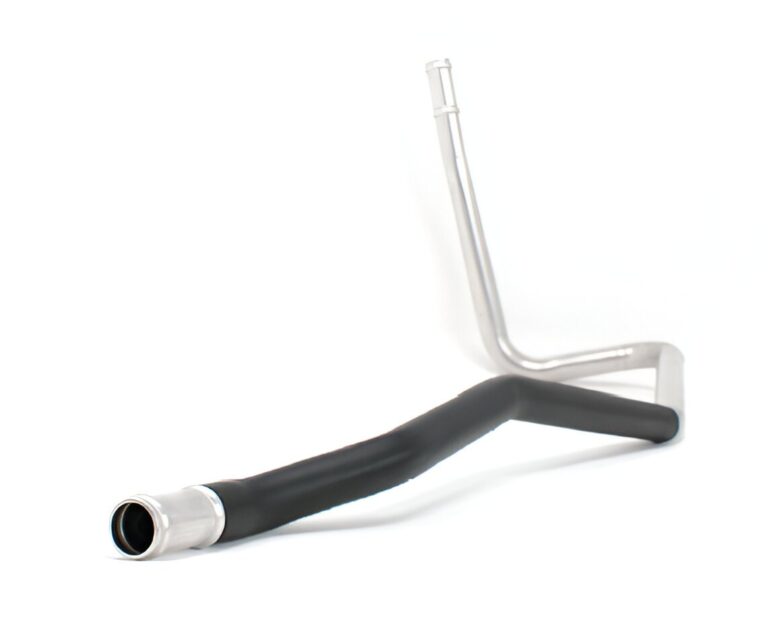

Thin wall crosslinked polyolefin with specially designed dimensions and functions for A/C pipes.
Features and Benefits
- >2:1 shrink ratio
- Good resistance against chemicals
- Good adhesion to the aluminium pipe, even without additional adhesive lining
- No detachment of heat shrink tubing from the aluminium pipes when being bent, particularly in the fold/bend area
- Abrasive protection even under extreme temperatures
- Corrosion protection
- Continuous operating temperature: -55°C to 135°C
- Shrink temperature: 110°C to 200°C
- Refers to Spez. no 48
Standards
- TL 52668 Type C
Typical Applications
Protection against mechanical damage, corrosion and diffusion effect of mineral greases and oils
Market/Applications
- Single Wall
- Hose and Pipe Protection
- Automotive
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Please specify the product name, order number and options you require
- Color: Black (BK)
- Order example: DERAY®-HB NS K48, 2410190951, black, 250 m
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Wall Thickness (Nom) W |
Spool | |
| mm (in) | mm (in) | mm (in) | m (ft) | |
| 2410190951 | 18.0 (0.709) | 7.5 (0.295) | 1.0 (0.039) | 250 (820) |
| 2410220951 | 22.0 (0.866) | 7.5 (0.295) | 1.0 (0.039) | 250 (820) |
| 2410270955 | 27.0 (1.063) | 12.7 (0.50) | 0.8 (0.031) | 250 (820) |
| 2410400951 | 40.0 (1.575) | 14.0 (0.551) | 1.2 (0.047) | 100 (100) |
| 2410150951 | 15.0 (0.590) | 7.5 (0.295) | 1.0 (0.039) | 250 (250) |
