CGEL

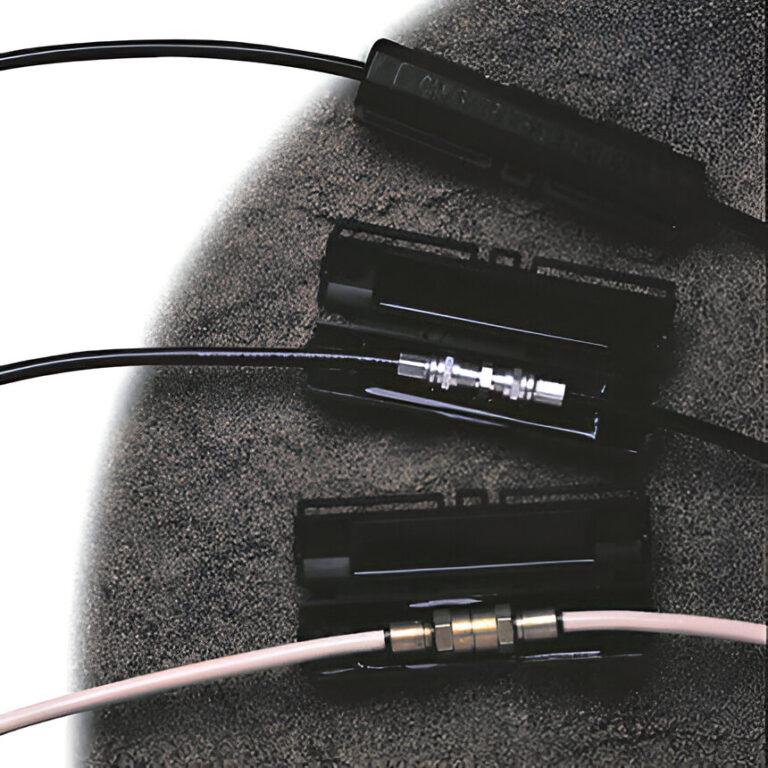

Gel drop splice enclosure
Gel filled closures are a simple, fast and effective method for providing complete environmental protection for coaxial drop splices.
Features and Benefits
- Single piece, clam shell design, requires no additional tools for installation
- Gel filled for complete waterproof protection
- Expansion chambers prevent Gel overflow
- Accommodates a wide range of environmentally sealed coaxial connectors and cable types including quad shielded cable
- Available in two sizes:
- CE 596 for 59 and 6 series cable
- CE 711 for 7 and 11 series cable
- Channel provided to retain messenger cable
- Fully re-enterable
- Tough outer shell withstands impacts to 5 ft-lb
- Withstands extreme temperatures (-45°C to 90°C)
Standards
- Meets SCTE IPS-TP-013 (ANSI/SCTE 60 2004) requirements for water immersion and temperature cycling
Typical Applications
Environmental protection of cable splices
Applicable Cables
- Cables: All 59 and 6 series coaxial cables including quad shield with messengers All 7 and 11 series coaxial cables including quad shield with messengers
Ordering
- Please specify the product name plus the options you require
- Order Example: CGEL, CE 596
- Packaging: 12 pieces per box
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
Market/Applications
- Industrial
- Communications Cable Splice & Protection
| Order Number | Nominal Diameter | Lengths | ||
| mm | in | mm | in | |
| CE 596 | 25.4 | 1.0 | 116 | 4.6 |
| CE 711 | 31.0 | 1.2 | 165 | 6.5 |
