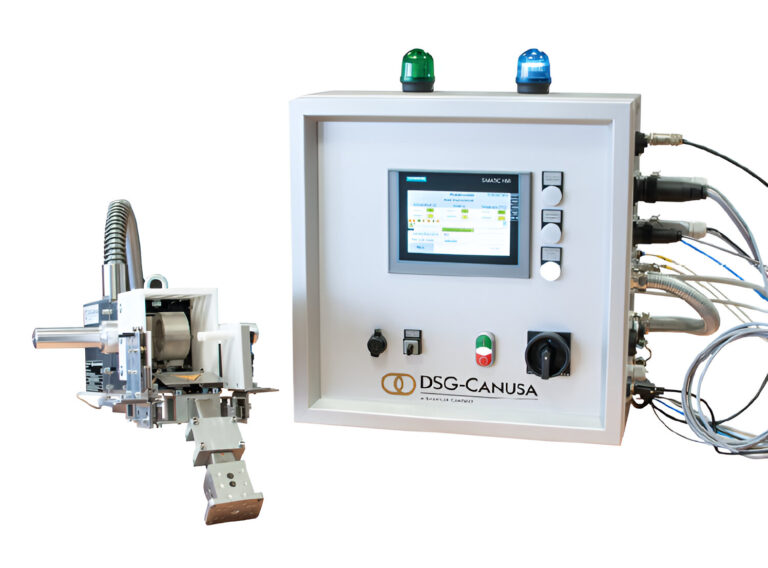

DERAY®-Board-WorkMan RFID
Mobile shrink equipment
DERAY®-Board-Workman RFID is a mobile shrink equipment designed to process heat shrink tubes onto splices and multicore cable sets for longitudinal water sealing on the harness board.
Features and Benefits
- Mobile use on the harness board
- High flexibility by selection of up to 200 processing programs
- Working on up to 40 docking points on harness board per cycle to improve productivity
- Automatic position detection on the wiring board due to docking points with RFID-chip
- Automatic selection of process parameters via USB scanner or manually via touch panel
- Communication systems: RS232, TCP/IP and OPC UA
- Cooling system: Compressed air
- Machine hours counter
- Adjustable parameters: Shrink and cooling time, temperature control through Siemens CPU
- Password protected programming mode
- Selection of system language: English, German, Polish (others on demand)
- CE and RoHs conformity
Applications
Parallel splices, end splices, ColdMelt Lite sealing system
Operation
Before start of production, the RFID code of the harness needs to be communicated by a USB scanner to the shrink equipment. The identification by RFID happens as soon as the work tool is docked at the docking point. The process parameters of the selected shrink point appear on the display, the shrink process can be started. After the shrink process is completed, the shrink chamber opens and the heating unit returns to its home position. The cooling system helps to ensure that any emerging adhesive hardens rapidly and the completed cables are soon ready for further processing.
Order Information
DERAY®-Board-Workman RFID
Heat shrink products & sizes
DSG-Canusa Heat Shrink Products
- Tubing diameter 50 mm max., tubing length 60 mm max.
For other products and sizes contact DSG-Canusa Application Engineering
Scope of Delivery
- Shrink equipment
- Control unit
- One shrink chamber
- 2 external buttons: start/stop and abord
- Operating manual: English, German, Polish (others on demand)
Accessories
- RFID docking points
- USB scanner
Market/Applications
- Dual Wall
- Single Wall
- OEM
- Splice Sealing Solutions
- Transit
- Automotive
- Marine
- Aerospace Defense
- Application Equipment
- Waterblocking
| Properties | |
| Electrical connection | 1/N/PE AC 230 V 50-60Hz |
| Electrical power consumption | approx. 1.1 kW/h at 275°C shrink temperature |
| Electrical power consumption | max. 3.6 kW |
| Rated current | 16A |
| Electrical fuse protection at the owner | 16A |
| Degree of protection of control unit | IP54 |
| Degree of protection of shrink head | IP20 |
| Shrink temperature | 150°C – 300°C (302°F – 572°F) |
| Pneumatic connection | 4.5 – 10 bar (65.3 psi – 145 psi) |
| Pneumatic work pressure | 5 bar (72 psi) |
| Heating air shrink chamber adjustable | 0.5 – 1.0 bar (7.3 – 14.5 psi) |
| Air consumption | 150 – 180 ltr/min. (5.3 – 6.4 cfm) |
| Ambient temperature | 10°C – 45°C (50°F – 133°F) |
| Sound pressure level | approx. 67dB(A) |
| Dimensions and weight | |
| Shrink equipment | w 360 x h 500 x d 580 mm (w 14.2 x h 19.7 x d 22.8 in) 15 kg (33.1 lbs) |
| Control unit | w 700 x h 520 x d 350 mm (w 27.6 x h 20.5 x d 13.8 in) 40 kg (88.2 lbs) |
