DERAY®-DockMan Junior Endsplice
Hot air shrink equipment

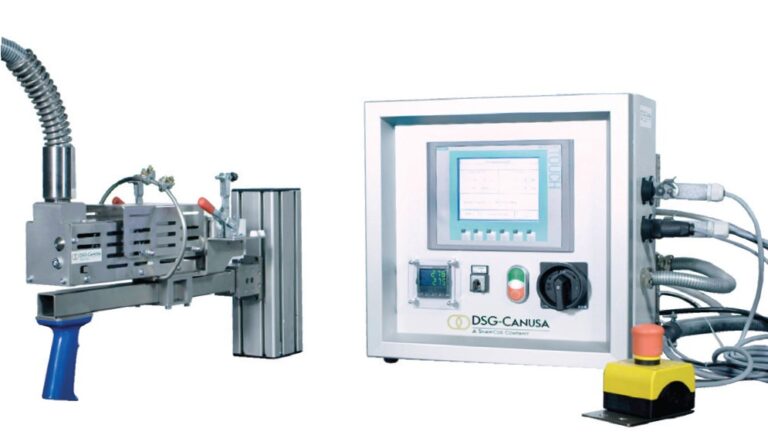

The DERAY®-DockMan Junior Endsplice is a hot air shrink equipment to process heat shrink tubes in wiring systems. It is primarily used for mobile, manual use on the cable board with a balancer.
The equipment has been designed specifically to process adhesive lined heat shrink on ultrasonically welded- and crimped end splices on stationary and mobile forming boards in transfer lines.
Features and Benefits
- Very flexible handling as the shrink unit can be docked to any position on the forming board
- Automatic control of shrink temperature and process time
- Easy handling through two-sided insertion of application
- Safe use by locking the application in shrink chamber
- User friendly weight-neutral suspension device
- Automatic selection of process parameters via USB scanner or manually via touch panel
- Communication system through RS232, TCP/IP and OPC UA
- Password protected programming mode
- Stand-by heating
- Selection of system language: English, German, French (others on demand)
- CE and RoHs conformance
Applications
End splices on wiring harness boards
Operation
The DERAY®-DockMan Junior Endsplice is fixed to the wiring harness board at the previously attached docking station. The end splice to be processed is inserted into the shrink chamber and fixed. When the start button is pressed, the previously selected shrink time is performed. At the end of the process, the finished end splice is removed and the device is docked at the next shrink point.
Order Information
- DERAY®-DockMan Junior Endsplice
Heat Shrink Products & Sizes
- DERAY®-SpliceMelt Sizes 1 to 3, length max.65mm
For other products and sizes contact DSG-Canusa Application Engineering
Scope of Delivery
- Shrink equipment
- Control unit
- External emergency stop button
- Balancer
- Operating manual: English, German, French (others on demand)
Accessories
- Shrink chambers: Width 100 mm
Market/Applications
- Dual Wall
- Single Wall
- OEM
- Splice Sealing Solutions
- Automotive
- Application Equipment
- Waterblocking
| Properties | |
| Electrical connection | 1/N/PE AC 230 V 50-60Hz |
| Electrical current consumption | approx. 1.1 kW/h at 275°C shrink temperature |
| Electrical power consumption | max. 3.6 kW |
| Rated current | 16A |
| Electrical fuse protection at the owner | 16A |
| Degree of protection of control unit | IP54 |
| Degree of protection shrink head | IP20 |
| Pneumatic connection | 6 – 10 bar (87 – 145 psi) |
| Pneumatic work pressure | 5 bar (72 psi) |
| Air consumption | 150 – 180 ltr/min (5.3 – 6.4 cfm) |
| Heating air shrink chamber adjustable | 0.5 – 1.0 bar (7.3 – 14.5 psi) |
| Shrink temperature | max. 275°C ( max. 527°F) |
| Ambient temperature | 10°C – 45°C (50°F – 113°F) |
| Sound pressure level | approx. 67dB(A) |
| Dimensions and weight | |
| Shrink equipment | w 190 x h 540 x d 430 mm (w 7.4 x h 21.2 x d 16.9 in) 18 kg (39.6 lbs) |
| Control unit | w 600 x h 400 x d 330 mm (w 27.6 x h 15.7 x d 13 in) 19 kg (41.9 lbs) |
