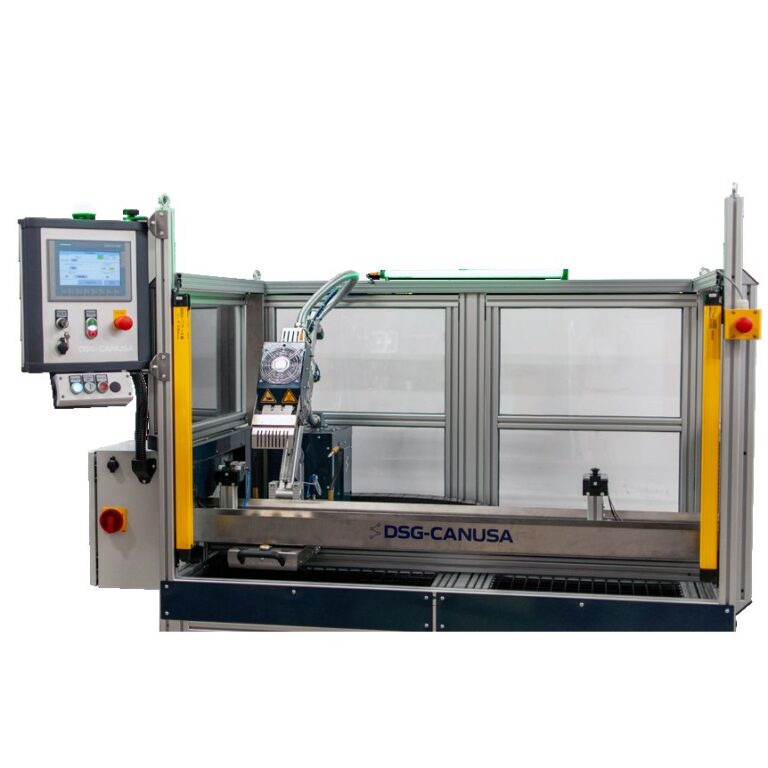

DERAY®-WorkMan 2.0 Motion
The DERAY®-WorkMan 2.0 Motion is a hot air shrink equipment with a steplessly horizontal movable shrink chamber is designed to process heatshrink tubes onto a wide variety of applications. The universal machine can be used for both pre-assembly and wire harness series production purposes.
Features and Benefits
- Variable setup of working cell
- Flexible adjustable driving speed and shrinking position
- Network connection allows data exchange between shrink machine and customer network
- Continuous monitoring of heating elements condition for preventive maintenance
- Customization of fixtures for optimal process results
- Auto-Off & Standby feature can be set individually for energy-saving purposes
- Automatic Calibration including monitoring & alert of expiration of calibration
- High application variety through various shrink chamber sizes
- Air pressure adjustment by scan or via display
- Selection of system language: English, German, French, Spanish (others on demand)
- CE and RoHs conformance
Sequential or continuous shrink programmable
Ø 30–80 mm shrink chambers available
Available from 1m drive distance, scalable up to 10 meters
Applications
Air conditioning pipes, brake pipes, cable bundle sealing, seatbelt buckles, connectors, battery cables, end splices, Y-Splices for HV
Operation
The application need to be placed into the custom holders (optionally to be locked pneumatically), once the operator left the working cell, the device need to be set manually to the ready to work status for safety purposes. Once the working cell is ready, the operator can launch the shrinking process. The device can shrink punctually on each position within the working cell or can shrink a longer distance as well. The travel speed and the duration of the shrink chamber can be programmed accordingly. A separate cooling can be added as well to each shrinking cycle. During the total process time, the working cell is locked by a safety laser barrier. Once the cell is entered during shrinking process, it’s interrupted until release by higher service level.
Order Information
DERAY®-WorkMan Motion
Heat-shrink products & sizes:
DSG-Canusa heat shrink products:
- Maximum tubing diameter up to 70 mm
- No limitation in maximum sleeve length
For other products and sizes, contact DSG-Canusa Application Engineering.
Scope of Delivery:
- DERAY®-WorkMan 2.0 Motion
- Shrink chamber
- Operating manual: English, German, French, Spanish (others on demand)
Accessories:
- USB Scanner
- Shrink chamber width up to 210mm internal diameter up to 80 mm
- Calibration sensor
- Custom application holder
- Vision System
Technical Data
| Property | |
| Electrical connection | 1/N/PE AC 230 V 50-60 Hz |
| Electrical current consumption | approx. 1.1 kW/h at 275°C shrink temperature |
| Electrical power consumption max. | 3.6 kW |
| Rated current | 16 A |
| Elec. fuse protection at the owner | 16 A |
| Degree of protection | Control unit: IP 54; shrink head: IP 20 |
| Shrink temperature | 150°C – 275°C (302°F – 527°F) |
| Pneumatic connection | 6 – 8 bar (90 – 115 psi) |
| Pneumatic work pressure | 5 bar (72 psi) |
| Compressed air consumption | 100 – 300 ltr/min (3.5 – 10.6 cfm) |
| Heating air shrink chamber adjustable | 0.5 – 1.0 bar (7.3 – 14.5 psi) |
| Ambient temperature | 10°C – 45°C (50°F – 113°F) |
| Sound pressure level | approx. 67 dB(A) |
| Dimensions and weight | |
| Shrink equipment | W 1700 x H 1815 x D 900 |
