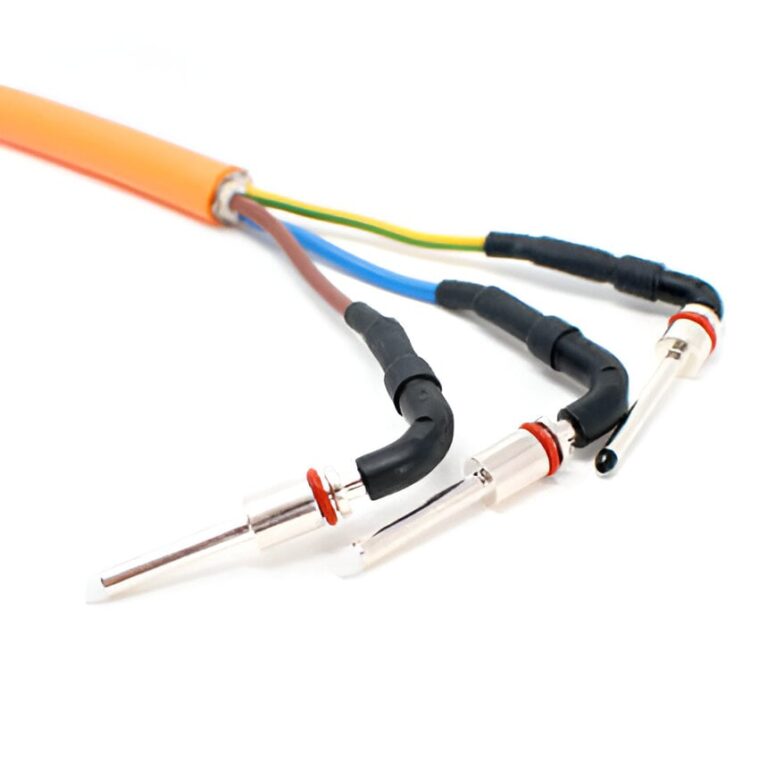

DERAY®-H
Thin wall crosslinked polyolefin
Multi-purpose, flame retardant, flexible heat shrink tubing.
Features and Benefits
- Self-extinguishing (colors only)
- Flexible
- Suitable for various applications
- Good resistance to common fluids and solvents
- High dielectric strength
- Shrink ratio: 2:1
- Continuous operating temperature: -55°C to 135°C
- Shrink temperature: 110°C min.
Standards
- UL file # E107857 (colors only)
- CSA 22.2 No 198.1 125C – CSA file # 065789_0_000 (colors only)
- Approved to major automotive OEM specifications
Typical Applications
Abrasion and mechanical protection, cable insulation, marking and bundling of electrical or mechanical components, strain relief, corrosion protection
Market/Applications
- Automotive
- Industrial
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK), red (RD), white (WT), clear (CL), blue (BL), yellow (YL), green (GR), brown (BN), grey (GY)
- Please specify the product name, order number and options you require
- Example: DERAY®-H, 0250 or 1/4 in, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | ||||||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Wall Thickness (Nom) W |
Spool* | Mini-Spool | Lengths 1.22 m / 48in |
||||||
| mm | in | mm | in | mm | in | m | ft | m | ft | pcs | |
| 0047 | 1.2 | 3/64 | 0.6 | 0.024 | 0.40 | 0.016 | 300 | 984 | 150 | 492 | 25 |
| 0063 | 1.6 | 1/16 | 0.8 | 0.031 | 0.40 | 0.016 | 300 | 984 | 150 | 492 | 25 |
| 0094 | 2.4 | 3/32 | 1.2 | 0.047 | 0.50 | 0.020 | 300 | 984 | 150 | 492 | 25 |
| 0125 | 3.2 | 1/8 | 1.6 | 0.063 | 0.50 | 0.020 | 300 | 984 | 150 | 492 | 25 |
| 0187 | 4.8 | 3/16 | 2.4 | 0.094 | 0.50 | 0.020 | 300 | 984 | 75 | 246 | 25 |
| 0250 | 6.4 | 1/4 | 3.2 | 0.126 | 0.60 | 0.024 | 300 | 984 | 75 | 246 | 25 |
| 0375 | 9.5 | 3/8 | 4.8 | 0.189 | 0.60 | 0.024 | 150 | 492 | 75 | 246 | 25 |
| 0500 | 12.7 | 1/2 | 6.4 | 0.252 | 0.60 | 0.024 | 100 | 328 | 50 | 164 | 25 |
| 0625 | 16.0 | 5/8 | 8.0 | 0.315 | 0.60 | 0.024 | 100 | 328 | 50 | 164 | 10 |
| 0750 | 19.0 | 3/4 | 9.5 | 0.374 | 0.80 | 0.031 | 50 | 164 | 30 | 98 | 10 |
| 1000 | 25.4 | 1 | 12.7 | 0.500 | 0.90 | 0.035 | 50 | 164 | 30 | 98 | 10 |
| 1250 | 31.8 | 1 1/4 | 15.9 | 0.626 | 0.90 | 0.035 | 50 | 164 | 30 | 98 | – |
| 1500 | 38.0 | 1 1/2 | 19.0 | 0.748 | 1.00 | 0.039 | 50 | 164 | 30 | 98 | – |
| 2000 | 51.0 | 2 | 25.4 | 1.000 | 1.10 | 0.043 | 50 | 164 | 30 | 98 | – |
| 3000 | 76.0 | 3 | 38.0 | 1.496 | 1.30 | 0.051 | 25 | 82 | 15 | 49 | – |
| 4000 | 101.6 | 4 | 50.8 | 2.000 | 1.40 | 0.055 | 25 | 82 | 15 | 49 | – |
Clear items not UL or CSA listed.
*Delivery unit spool only available for black items
