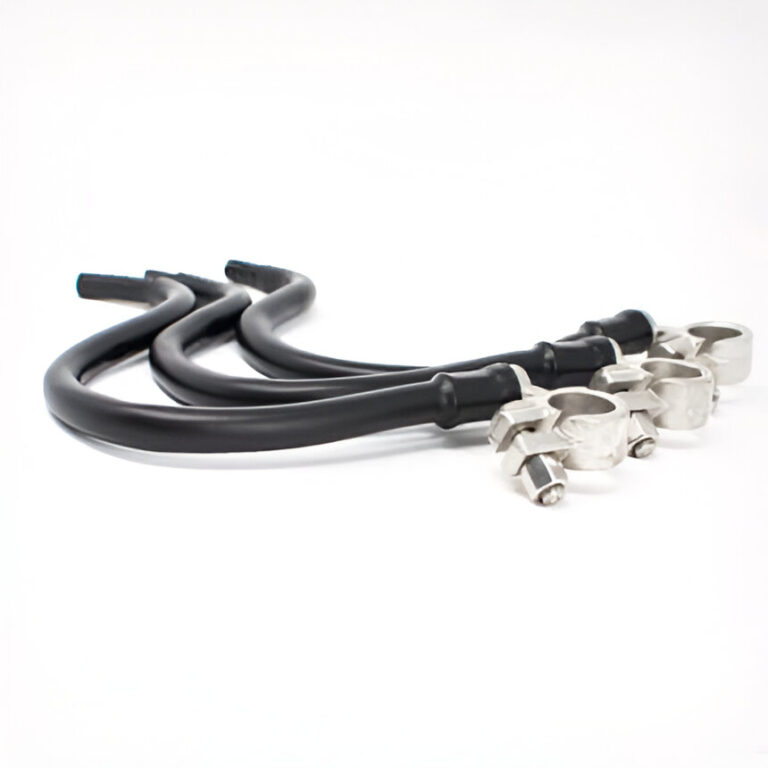

DERAY®-HDP
Medium wall crosslinked polyolefin
Halogen free, high density heat shrink tubing specially designed to meet the form stable demands in automotive battery cable and ground strap areas
Features and Benefits
- Rigid
- Halogen free
- Form stable
- Highly abrasion resistant
- Glossy surface finish
- Shrink ratio: >2:1
- Continuous operating temperature: -40°C to 135°C
- Shrink temperature: 120°C
Standards
- VW 60360-3
- GS 95008-3-3
Typical Applications
- Insulation of battery cables and ground straps
- Protection against mechanical damage and corrosion in industrial applications, e.g. tools
- Strain relief and abrasion protection
Market/Applications
- Industrial
- Automotive
Ordering
Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK)
- Please specify the product name, order number and options you require
- Order example: DERAY®-HDP, 15.0/6.5, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Total Wall Thickness (Nom) W |
Spool | |||||
| mm | in | mm | in | mm | in | m | ft | |
| 15.0/6.5 | 15.0 | 0.591 | 6.5 | 0.256 | 1.25 | 0.049 | 250 | 820 |
| 20.0/6.5 | 20.0 | 0.787 | 6.5 | 0.256 | 2.00 | 0.079 | 100 | 328 |
