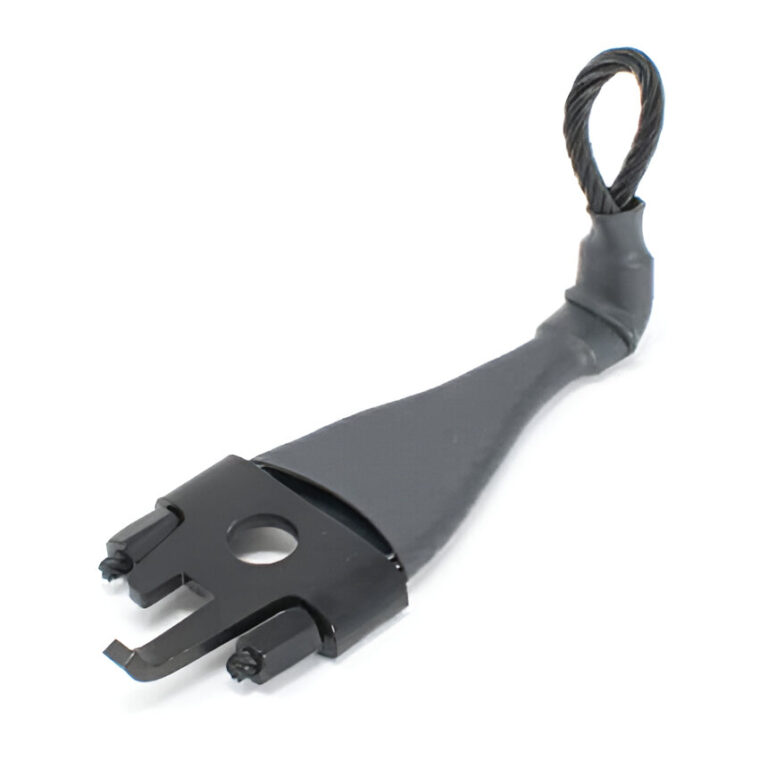

DERAY®-HB
Thin wall crosslinked polyolefin
Halogen free, economical, heat shrink tubing.
Features and Benefits
- Flexible
- Economical
- General purpose
- Halogen free alternative to PVC
- Shrink ratio: 2:1
- Continuous operating temperature: -55°C to 125°C
- Shrink temperature: 110°C min.
Typical Applications
Abrasion protection, insulation of electrical or mechanical components, protection against mechanical damage and corrosion
Market/Applications
- Single Wall
- Automotive
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK), clear (CL)
- Please specify the product name, order number and options you require
- Example: DERAY®-HB, 0500 or 1/2 in, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |||||||
| Internal Diameter (Min) D |
Internal Diameter (Max) D |
Wall Thickness (Nom) W |
Spool Lengths | Mini-Spool Lengths* | ||||||
| mm | in | mm | in | mm | in | m | ft | m | ft | |
| 0063 | 1.6 | 1/16 | 0.8 | 0.031 | 0.40 | 0.016 | 300 | 984 | 150 | 492 |
| 0094 | 2.4 | 3/32 | 1.2 | 0.047 | 0.50 | 0.020 | 300 | 984 | 150 | 492 |
| 0125 | 3.2 | 1/8 | 1.6 | 0.063 | 0.50 | 0.020 | 300 | 984 | 150 | 492 |
| 0187 | 4.8 | 3/16 | 2.4 | 0.094 | 0.50 | 0.020 | 300 | 984 | 75 | 246 |
| 0250 | 6.4 | 1/4 | 3.2 | 0.126 | 0.60 | 0.002 | 300 | 984 | 75 | 246 |
| 0375 | 9.5 | 3/8 | 4.8 | 0.189 | 0.60 | 0.024 | 150 | 492 | 75 | 246 |
| 0500 | 12.7 | 1/2 | 6.4 | 0.252 | 0.60 | 0.024 | 100 | 328 | 50 | 164 |
| 0625 | 16.0 | 5/8 | 8.0 | 0.315 | 0.60 | 0.024 | 100 | 328 | 50 | 164 |
| 0750 | 19.0 | 3/4 | 9.5 | 0.374 | 0.80 | 0.031 | 50 | 164 | 30 | 98 |
| 1000 | 25.4 | 1 | 12.7 | 0.500 | 0.90 | 0.035 | 50 | 164 | 30 | 98 |
| 1500 | 38.0 | 1 1/2 | 19.0 | 0.748 | 1.00 | 0.039 | 50 | 164 | 30 | 98 |
| 2000 | 51.0 | 2 | 25.4 | 1.000 | 1.10 | 0.043 | 50 | 164 | 30 | 98 |
*Clear items available on mini-spool
