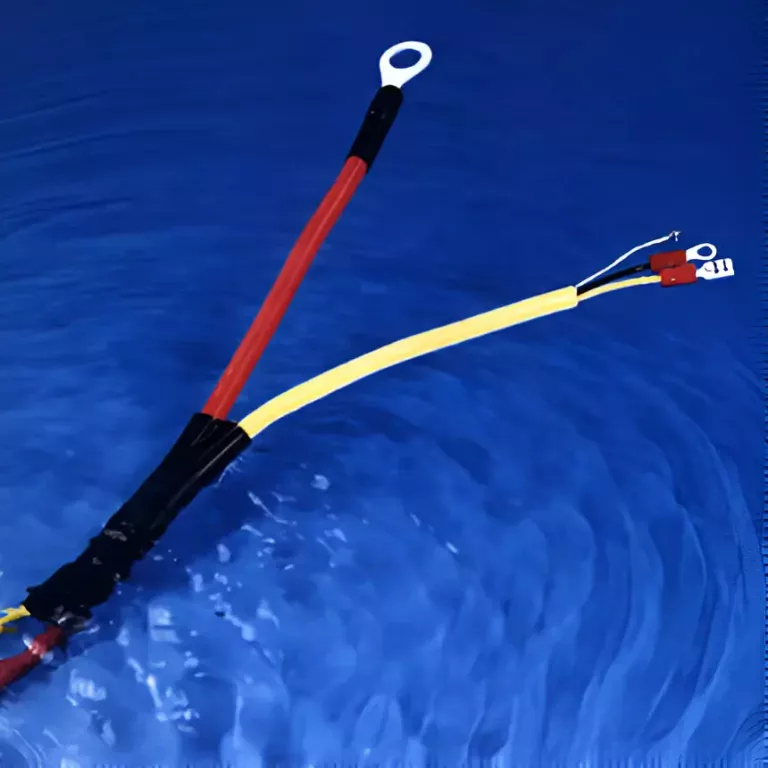

DERAY®-HXKT
Thin wall adhesive lined crosslinked semi-rigid polyolefin
Semi-rigid, adhesive lined, heat shrink tubing ideal for higher temperature applications and where strain relief or abrasion resistance is required.
Features and Benefits
- Semi-rigid jacket for excellent strain relief
- Thick adhesive liner ensures complete environmental protection
- Seals against water and other contaminants
- Inner adhesive bonds to plastics, rubbers and metals
- Controlled adhesive viscosity prevents excessive flow on terminals
- Shrink ratio: >2:1
- Continuous operating temperature: -55°C to 110°C
- Shrink temperature: 110°C
Standards
- Industrial and Automotive OEM Approvals
Typical Applications
Strain relief and sealing of terminals, corrosion protection of high temperature components and brazed joints, mechanical protection of wire leads
Market/Applications
- Industrial
- Automotive
Ordering
- Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Black (BK)
- Please specify the product name, order number and options you require
- Order example: DERAY®-HXKT, 0187 or 3/16″, black
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | ||||||||
| Internal Diameter (Min) D |
Internal Diameter (Max) d |
Total Wall Thickness (Nom) W |
Adhesive Line Thickness (Nom) W1 |
Spool Lengths | Lengths 1.22m / 48in |
||||||
| mm | in | mm | in | mm | in | mm | in | m | ft | pcs | |
| 0125 | 3.2 | 1/8 | 0.8 | 0.031 | 0.90 | 0.035 | 0.40 | 0.016 | 300 | 984 | 25 |
| 0187 | 4.8 | 3/16 | 1.5 | 0.059 | 1.40 | 0.055 | 0.80 | 0.031 | 300 | 984 | 25 |
| 0250 | 6.4 | 1/4 | 2.0 | 0.079 | 1.40 | 0.055 | 0.75 | 0.030 | 300 | 984 | 10 |
| 0375 | 9.5 | 3/8 | 3.4 | 0.134 | 1.65 | 0.065 | 1.00 | 0.039 | 150 | 492 | 10 |
| 0500 | 12.7 | 1/2 | 5.0 | 0.197 | 1.70 | 0.067 | 1.00 | 0.039 | 100 | 328 | 10 |
| 0750 | 19.0 | 3/4 | 8.0 | 0.315 | 1.95 | 0.077 | 1.20 | 0.047 | – | – | 10 |
| 1000 | 25.4 | 1 | 10.2 | 0.402 | 2.00 | 0.079 | 1.20 | 0.047 | – | – | 10 |
